| Manufacturer Part Number | D2GP185032 |
| Diameter (Decimal Inch) | 0.5000" |
| Diameter (Inch) | 1/2" |
| Diameter (mm) | 12.70mm |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (Inch) | 1/2" |
| Overall Length (Decimal Inch) | 6.0000" |
| Overall Length (Inch) | 6" |
| Overall Length (mm) | 152.40mm |
| Point Length (Decimal Inch) | 0.1036" |
| Point Length (mm) | 2.63mm |
| Point Angle (Degree) | 135 Degree |
| Helix Angle (Degree) | 30 Degree |
| Number of Flute | 2 |
| Coating | TiN |
| Material | HSS Co8 |
| Cutting Direction | Right |
| Hole Tolerance | h8 |

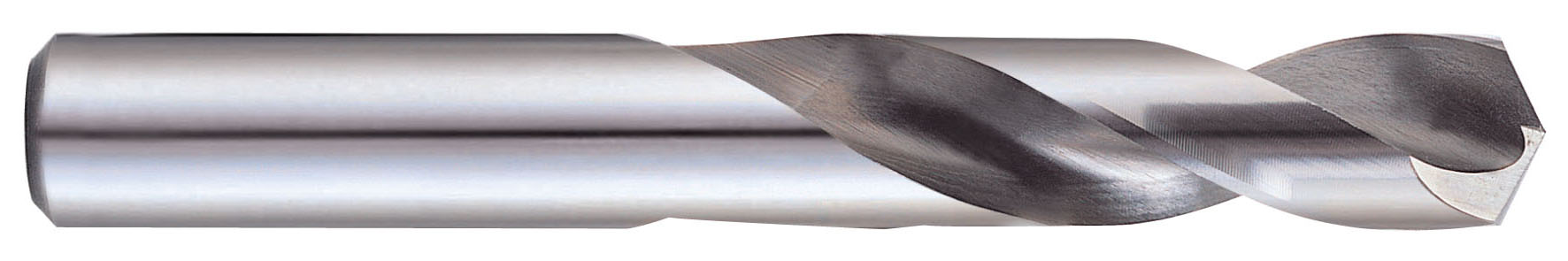

| Product Type | Jobber Length Drill Bit |
