| Manufacturer Part Number | D4107059 |
| Size (Inch) | 23/99" |
| Size (Decimal Inch) | 0.232" |
| Size (mm) | 5.90mm |
| Shank Diameter (Inch) | 23/99" |
| Shank Diameter (Decimal Inch) | 0.232" |
| Shank Diameter (mm) | 5.90mm |
| Flute Length (Inch) | 1-4/39" |
| Flute Length (Decimal Inch) | 1.102" |
| Flute Length (mm) | 28.00mm |
| Overall Length (Inch) | 2-3/5" |
| Overall Length (Decimal Inch) | 2.598" |
| Overall Length (mm) | 66.00mm |
| Point Length (Decimal Inch) | 0.048" |
| Point Length (mm) | 1.22mm |
| Point Angle (Degree) | 135 Degree |
| Helix Angle (Degree) | 33 Degree |
| Number of Flutes | 2 |
| Series | D4107 |
| Blank Standard | DIN 1897 |
| Coating | TiN |
| Material | HSS |
| Hole Tolerance | h8 |
| Cutting Direction | Right Hand |

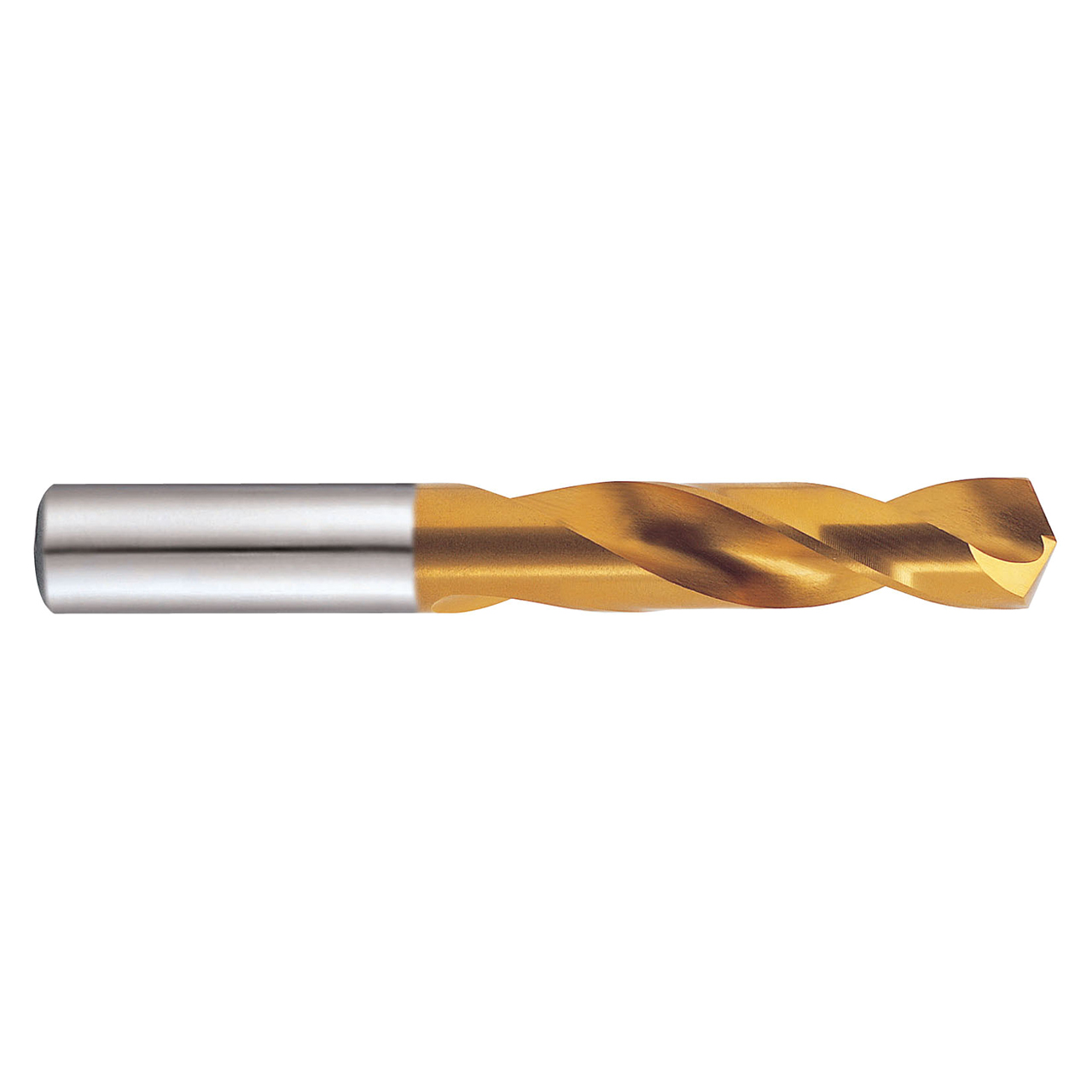

| Product Type | Screw Machine Length Drill Bit |
