Product Specifications
| Manufacturer Part Number | D4146021 |
| Diameter (Inch) | 21/64" |
| Diameter (Decimal Inch) | 0.3281" |
| Diameter (mm) | 8.33mm |
| Shank Diameter (Inch) | 21/64" |
| Shank Diameter (Decimal Inch) | 0.3281" |
| Shank Diameter (mm) | 8.33mm |
| Flute Length (Inch) | 1-11/16" |
| Flute Length (Decimal Inch) | 1.6900" |
| Flute Length (mm) | 42.86mm |
| Overall Length (Inch) | 2-15/16" |
| Overall Length (Decimal Inch) | 2.9375" |
| Overall Length (mm) | 74.61mm |
| Point Length (Decimal Inch) | 0.0680" |
| Point Length (mm) | 1.73mm |
| Number of Flute | 2 |
| Point Angle (Degree) | 135 Degree |
| Helix Angle (Degree) | 20-30 Degree |
| Cutting Direction | Right Hand |
| Material | HSS Co8 |
| Coating | TiN |

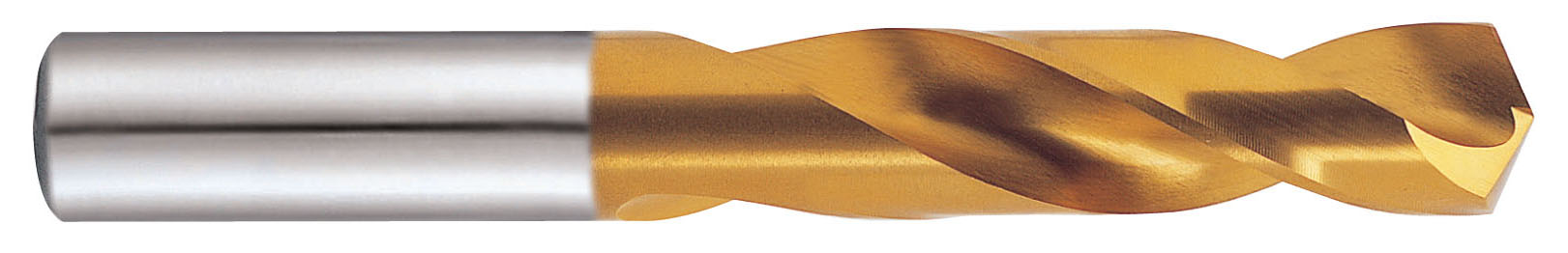

| Product Type | Screw Machine Length Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Flute Length (Inch):
1-11/16"
Flute Length (Decimal Inch):
1.6900"
Flute Length (mm):
42.86mm
Overall Length (Inch):
2-15/16"
Overall Length (Decimal Inch):
2.9375"
Overall Length (mm):
74.61mm
Material:
HSS Co8
Finish/Coating:
TiN
