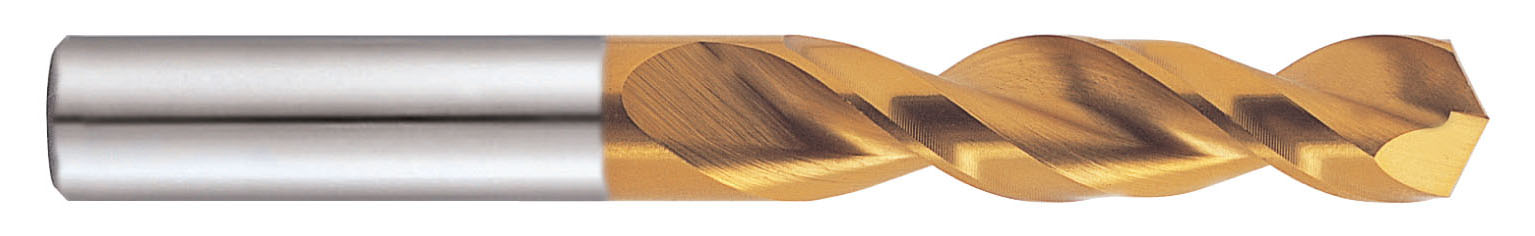

YG1 D4148104 | 14/67" Diameter x 14/67" Shank x 1-1/4" Flute Length x 2-3/8" OAL TiN Coated HSS Co8 Screw Machine Length Drill Bit

$3.77
Brand:
YG1
Flute Length (Inch):
1-1/4"
Flute Length (Decimal Inch):
1.2500"
Flute Length (mm):
31.75mm
Overall Length (Inch):
2-3/8"
Overall Length (Decimal Inch):
2.3750"
Overall Length (mm):
60.33mm
Material:
HSS Co8
Finish/Coating:
TiN
SKU:
10026634
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Product Specifications
Manufacturer Part NumberD4148104
Diameter (Inch)14/67"
Diameter (Decimal Inch)0.2090"
Diameter (mm)5.31mm
Shank Diameter (Inch)14/67"
Shank Diameter (Decimal Inch)0.2090"
Shank Diameter (mm)5.31mm
Flute Length (Inch)1-1/4"
Flute Length (Decimal Inch)1.2500"
Flute Length (mm)31.75mm
Overall Length (Inch)2-3/8"
Overall Length (Decimal Inch)2.3750"
Overall Length (mm)60.33mm
Point Length (Decimal Inch)0.0433"
Point Length (mm)1.10mm
Number of Flute2
Point Angle (Degree)135 Degree
Helix Angle (Degree)20-30 Degree
Cutting DirectionRight Hand
MaterialHSS Co8
CoatingTiN
Product TypeScrew Machine Length Drill Bit
