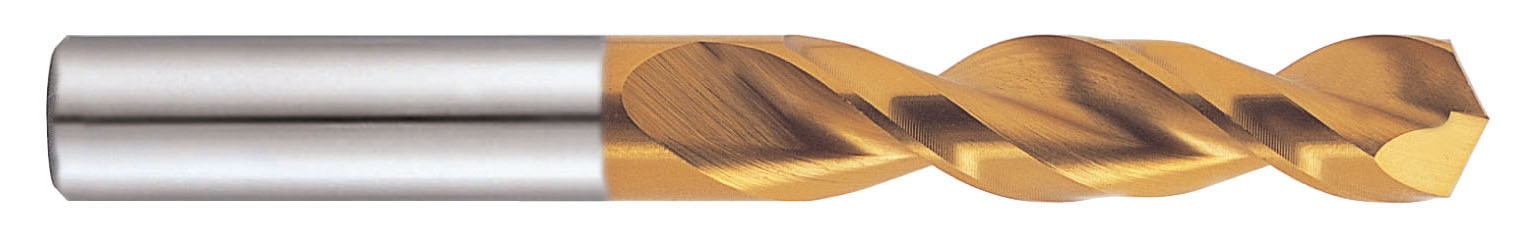

| Manufacturer Part Number | D4148106 |
| Diameter (Inch) | 10/49" |
| Diameter (Decimal Inch) | 0.2040" |
| Diameter (mm) | 5.18mm |
| Shank Diameter (Inch) | 10/49" |
| Shank Diameter (Decimal Inch) | 0.2040" |
| Shank Diameter (mm) | 5.18mm |
| Flute Length (Inch) | 1-1/4" |
| Flute Length (Decimal Inch) | 1.2500" |
| Flute Length (mm) | 31.75mm |
| Overall Length (Inch) | 2-3/8" |
| Overall Length (Decimal Inch) | 2.3750" |
| Overall Length (mm) | 60.33mm |
| Point Length (Decimal Inch) | 0.0422" |
| Point Length (mm) | 1.07mm |
| Number of Flute | 2 |
| Point Angle (Degree) | 135 Degree |
| Helix Angle (Degree) | 20-30 Degree |
| Cutting Direction | Right Hand |
| Material | HSS Co8 |
| Coating | TiN |
| Product Type | Screw Machine Length Drill Bit |
