| Manufacturer Part Number | D4148124 |
| Diameter (Inch) | 12/79" |
| Diameter (Decimal Inch) | 0.1520" |
| Diameter (mm) | 3.86mm |
| Shank Diameter (Inch) | 12/79" |
| Shank Diameter (Decimal Inch) | 0.1520" |
| Shank Diameter (mm) | 3.86mm |
| Flute Length (Inch) | 1" |
| Flute Length (Decimal Inch) | 1.0000" |
| Flute Length (mm) | 25.40mm |
| Overall Length (Inch) | 2-1/16" |
| Overall Length (Decimal Inch) | 2.0625" |
| Overall Length (mm) | 52.39mm |
| Point Length (Decimal Inch) | 0.0315" |
| Point Length (mm) | 0.80mm |
| Number of Flute | 2 |
| Point Angle (Degree) | 135 Degree |
| Helix Angle (Degree) | 20-30 Degree |
| Cutting Direction | Right Hand |
| Material | HSS Co8 |
| Coating | TiN |

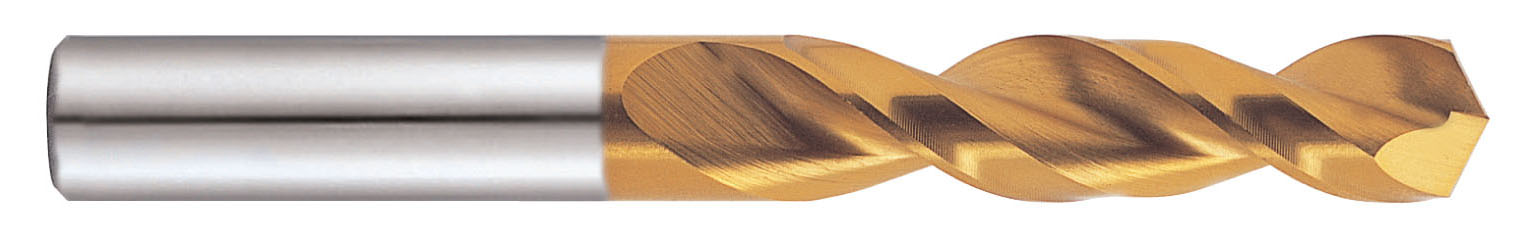

| Product Type | Screw Machine Length Drill Bit |
