Product Specifications
| EDP Number | D4202 |
| Size | #5 |
| Pitch (TPI) | 40 TPI |
| Diameter (Decimal Inch) | 0.1250" |
| Diameter (mm) | 3.18mm |
| Overall Length (Decimal Inch) | 1.9400" |
| Overall Length (mm) | 49.28mm |
| Thread Length (Decimal Inch) | 0.2360" |
| Thread Length (mm) | 5.99mm |
| Square Length (Decimal Inch) | 0.1900" |
| Square Length (mm) | 4.83mm |
| Shank Diameter (Decimal Inch) | 0.1410" |
| Shank Diameter (mm) | 3.58mm |
| Square Size (Decimal Inch) | 0.1100" |
| Square Size (mm) | 3.58mm |
| Neck Diameter (Decimal Inch) | 0.0900" |
| Neck Diameter (mm) | 2.29mm |
| Drill Size (Decimal Inch) | 0.1023" |
| Drill Size (mm) | 2.60mm |
| Useable Length (Decimal Inch) | 0.6260" |
| Useable Length (mm) | 15.90mm |
| Length/Diameter | 2.5xD |
| Number of Flutes | 3 |
| Series | D4 |
| Thread Series | UNC |
| Pitch Limit | H2 |
| Chamfer Length | 2P-3P |
| Blank Standard | 302A |
| Coating | Bright |
| Material | HSSE-V3 |
| Helix Angle (Degree) | 45 Degree |
| Shank Type | Square |
| Trade Name | YG Tap Steel |
| Tap Type | Spiral Flute |
| Chamfer Type | Modified Bottoming |

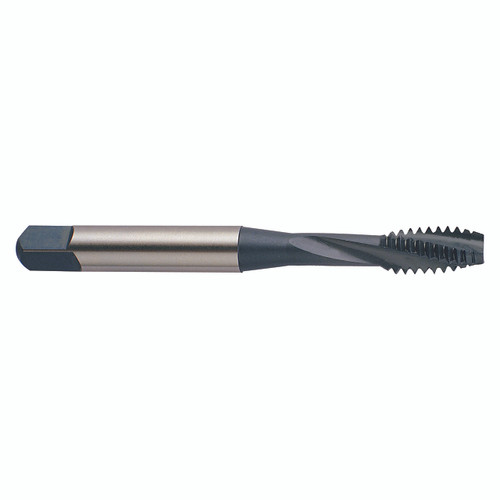

| Product Type | Spiral Flute Modified Bottom Tap |
