Product Specifications

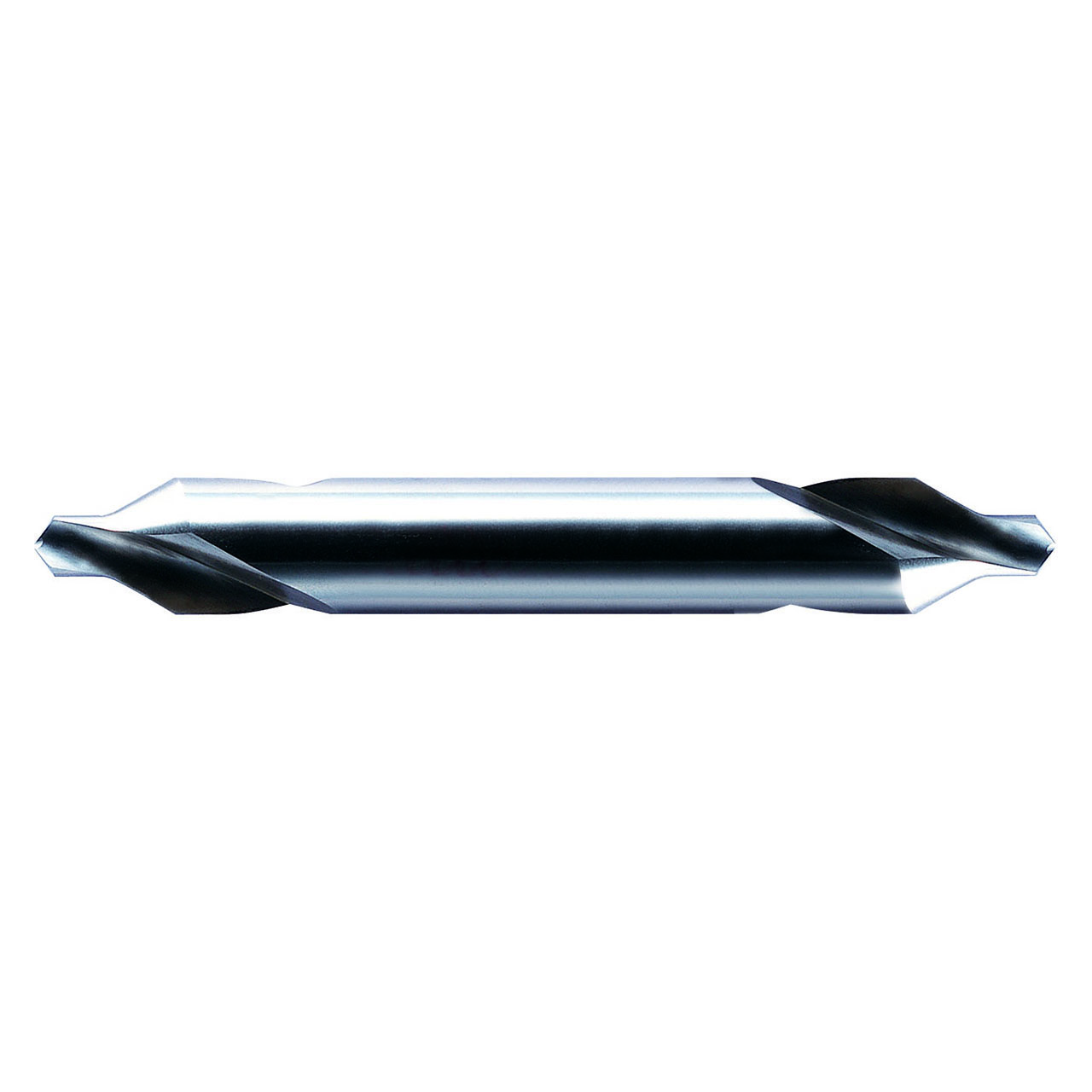

| EDP Number | D5331020 |
| Center Drill Size | #4 |
| Pilot Length (Decimal Inch) | 0.1250" |
| Pilot Length (Inch) | 1/8" |
| Pilot Length (mm) | 3.18mm |
| Pilot Diameter (Decimal Inch) | 0.1250" |
| Pilot Diameter (Inch) | 1/8" |
| Pilot Diameter (mm) | 3.18mm |
| Shank Diameter (Decimal Inch) | 0.3125" |
| Shank Diameter (Inch) | 5/16" |
| Shank Diameter (mm) | 7.94mm |
| Overall Length (Decimal Inch) | 2.1250" |
| Overall Length (Inch) | 2-1/8" |
| Overall Length (mm) | 53.98mm |
| Point Length (Decimal Inch) | 0.0361" |
| Point Length (mm) | 0.92mm |
| Point Angle | 120 Degree |
| Center Angle (Degree) | 60 Degree |
| Number of Flutes | 2 |
| Series | D5331 |
| Shank Tolerance | h8 |
| Coolant Through | No |
| Coating | Bright |
| Material | Solid Carbide |
| Hole Tolerance | k12 |
| Application | P,K |
| Cutting Direction | Right Hand |
| Product Type | Combination Drill & Countersink |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Drill Point Diameter (Inch):
1/8"
Drill Point Diameter (Decimal Inch):
0.1250"
Drill Point Diameter (mm):
3.18mm
Body Diameter (Inch):
5/16"
Body Diameter (Decimal Inch):
0.3125"
Body Diameter (mm):
7.94mm
Trade Size:
#4
Included Angle:
60 Degree
Material:
Solid Carbide
Finish/Coating:
Bright
Cutting Direction:
Right Hand
Overall Length (Inch):
2-1/8"
Overall Length (Decimal Inch):
2.1250"
Overall Length (mm):
53.98mm
