Product Specifications
| EDP Number | D5332032 |
| Center Drill Size | #6 |
| Pilot Length (Decimal Inch) | 0.2188" |
| Pilot Length (Inch) | 7/32" |
| Pilot Length (mm) | 5.56mm |
| Pilot Diameter (Decimal Inch) | 0.2188" |
| Pilot Diameter (Inch) | 7/32" |
| Pilot Diameter (mm) | 5.56mm |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (mm) | 12.70mm |
| Overall Length (Decimal Inch) | 3.0000" |
| Overall Length (Inch) | 3" |
| Overall Length (mm) | 76.20mm |
| Point Length (Decimal Inch) | 0.0631" |
| Point Length (mm) | 1.60mm |
| Point Angle | 120 Degree |
| Center Angle (Degree) | 90 Degree |
| Number of Flutes | 2 |
| Series | D5332 |
| Shank Tolerance | h8 |
| Coolant Through | No |
| Coating | Bright |
| Material | Solid Carbide |
| Hole Tolerance | k12 |
| Application | P,K |
| Cutting Direction | Right Hand |

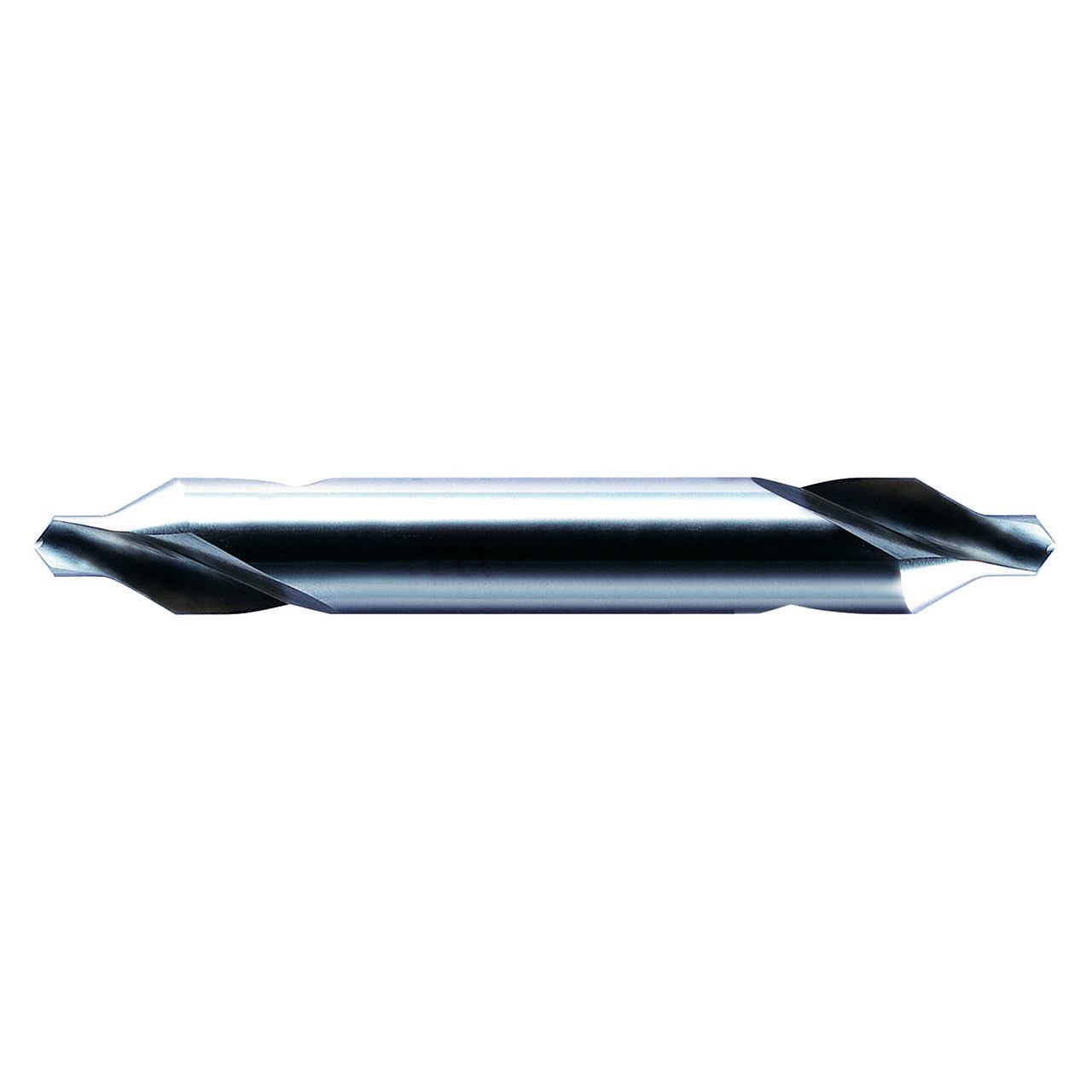

| Product Type | Combination Drill & Countersink |
