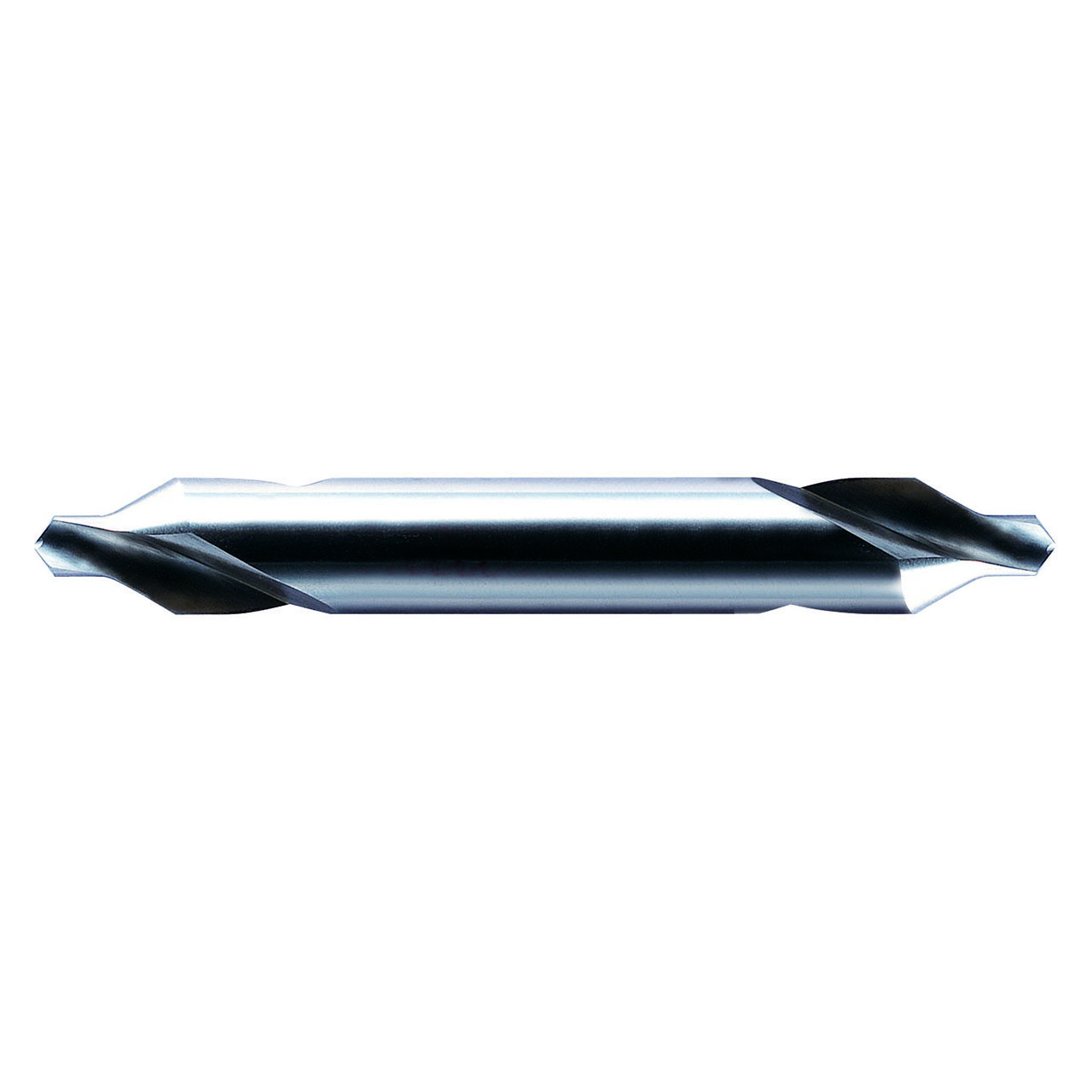

Product Specifications
| EDP Number | D5332040 |
| Center Drill Size | #7 |
| Pilot Length (Decimal Inch) | 0.2500" |
| Pilot Length (Inch) | 1/4" |
| Pilot Length (mm) | 6.35mm |
| Pilot Diameter (Decimal Inch) | 0.2500" |
| Pilot Diameter (Inch) | 1/4" |
| Pilot Diameter (mm) | 6.35mm |
| Shank Diameter (Decimal Inch) | 0.6250" |
| Shank Diameter (Inch) | 5/8" |
| Shank Diameter (mm) | 15.88mm |
| Overall Length (Decimal Inch) | 3.7500" |
| Overall Length (Inch) | 3-3/4" |
| Overall Length (mm) | 95.25mm |
| Point Length (Decimal Inch) | 0.0722" |
| Point Length (mm) | 1.83mm |
| Point Angle | 120 Degree |
| Center Angle (Degree) | 90 Degree |
| Number of Flutes | 2 |
| Series | D5332 |
| Shank Tolerance | h8 |
| Coolant Through | No |
| Coating | Bright |
| Material | Solid Carbide |
| Hole Tolerance | k12 |
| Application | P,K |
| Cutting Direction | Right Hand |
| Product Type | Combination Drill & Countersink |
