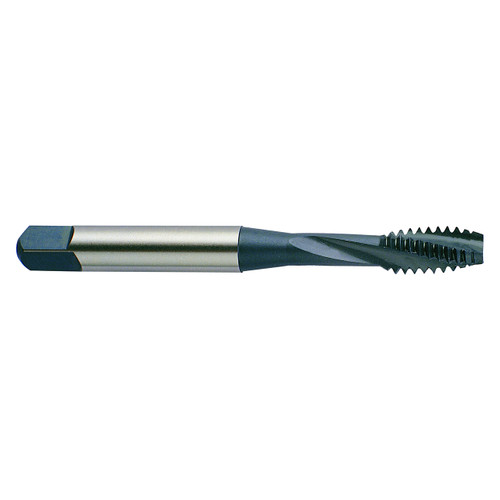

YG1 D6483 | UNC 3/8" - 16 Size x 0.381" Shank x 0.551" Thread Length x 2.940" OAL x 15 Degree Helix Angle H3 Modified Bottoming Chamfer Type 3 Flute Hardslick Coated P-HSS D6 Spiral Flute Tap

Brand:

YG1

Thread Size (Inch):

3/8"

Thread Size (Decimal Inch):

0.3750"

Thread Size (mm):

9.53mm

Thread Limit:

H3

Number of Flutes:

3

Chamfer:

Modified Bottoming

Material:

P-HSS

Finish/Coating:

Hardslick

Threads per Inch (TPI):

16

Overall Length (Decimal Inch):

2.9400"

Overall Length (mm):

74.68mm

interval quantity:

1

SKU:

15007688

UPC:

Weight:

0.08 LBS

Minimum Purchase:

1 unit

Shipping:

Calculated at Checkout
