Product Specifications
| # Manufacturer Number | D8643 |
| Diameter (Decimal Inch) | 0.6250" |
| Diameter (mm) | 15.88mm |
| Thread Size | 5/8" |
| Pitch | 11 TPI |
| Shank Diameter (Decimal Inch) | 0.4800" |
| Shank Diameter (mm) | 12.19mm |
| Overall Length (Decimal Inch) | 3.8100" |
| Overall Length (mm) | 96.77mm |
| Thread Length (Decimal Inch) | 0.7480" |
| Thread Length (mm) | 19.00mm |
| Square Length (Decimal Inch) | 0.5600" |
| Square Length (mm) | 14.22mm |
| Square Size (Decimal Inch) | 0.3600" |
| Square Size (mm) | 9.14mm |
| Neck Diameter (Decimal Inch) | 0.4690" |
| Neck Diameter (mm) | 0.00mm |
| Useable Length (Decimal Inch) | 2.2050" |
| Useable Length (mm) | 56.01mm |
| Drill Size (Decimal Inch) | 0.5423" |
| Drill Size (mm) | 13.78mm |
| Number of Flutes | 3 |
| Pitch Limit | H3 |
| Helix Angle (Degree) | 50 Degree |
| Coolant Through | No |
| Shank Type | Square |
| Finish / Coating | Hardslick |
| Material | HSSE-V3 |
| Chamfer Length | 2P-3P |
| Chamfer Type | Modified Bottoming |

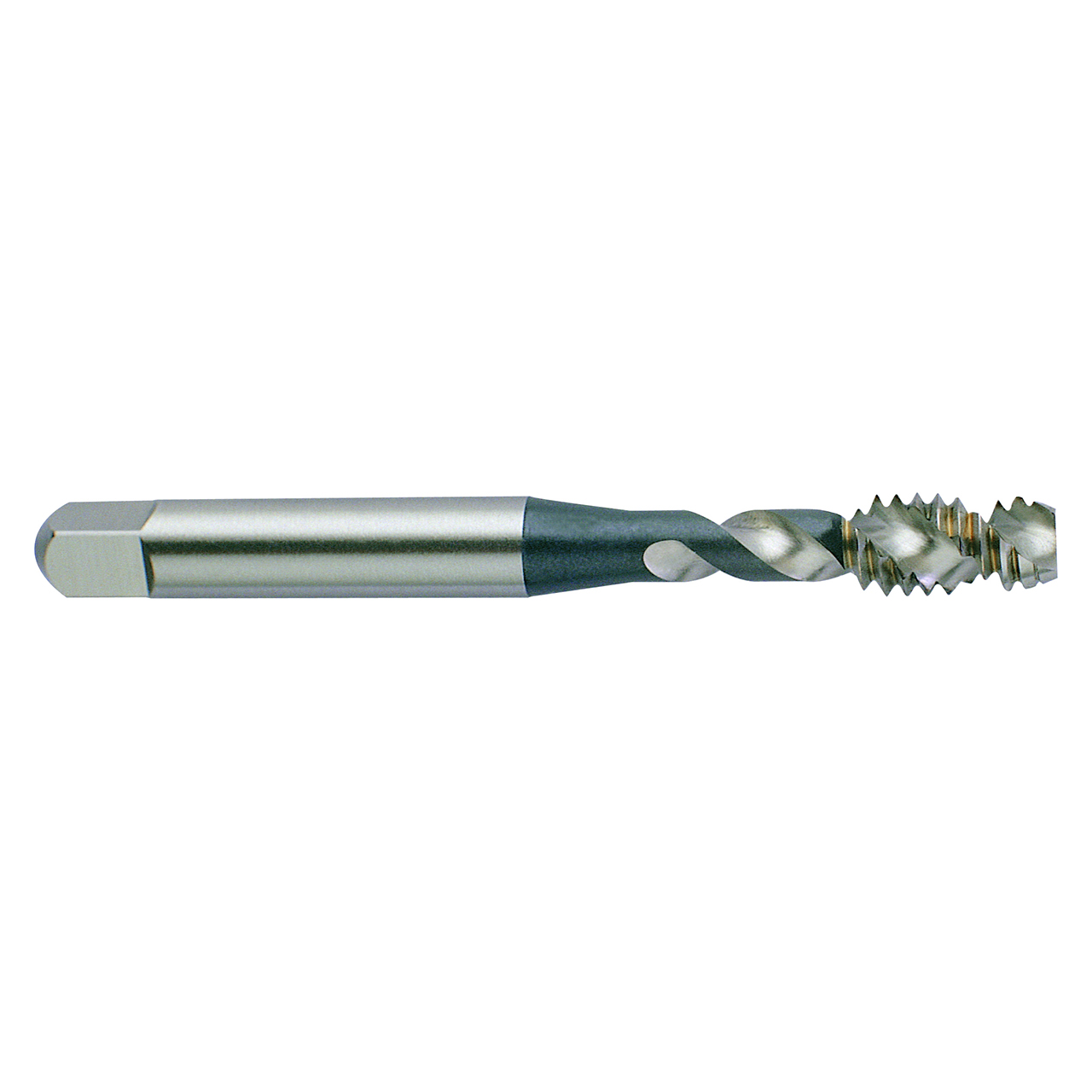

| Product Type | Spiral Flute Thread Tap |
