Product Specifications
| # Manufacturer Number | D8784 |
| Diameter (Decimal Inch) | 1.0000" |
| Diameter (mm) | 0.00mm |
| Thread Size | 1" |
| Pitch | 8 TPI |
| Shank Diameter (Decimal Inch) | 0.8000" |
| Shank Diameter (mm) | 20.32mm |
| Overall Length (Decimal Inch) | 5.1300" |
| Overall Length (mm) | 130.30mm |
| Thread Length (Decimal Inch) | 0.9840" |
| Thread Length (mm) | 24.99mm |
| Square Length (Decimal Inch) | 0.8100" |
| Square Length (mm) | 20.57mm |
| Square Size (Decimal Inch) | 0.6000" |
| Square Size (mm) | 15.24mm |
| Neck Diameter (Decimal Inch) | 0.7870" |
| Neck Diameter (mm) | 19.99mm |
| Useable Length (Decimal Inch) | 3.0910" |
| Useable Length (mm) | 78.51mm |
| Drill Size (Decimal Inch) | 0.8101" |
| Drill Size (mm) | 20.58mm |
| Number of Flutes | 3 |
| Pitch Limit | H4 |
| Helix Angle (Degree) | 50 Degree |
| Coolant Through | No |
| Shank Type | Square |
| Finish / Coating | Hardslick |
| Material | HSSE-V3 |
| Chamfer Length | 2P-3P |
| Chamfer Type | Modified Bottoming |

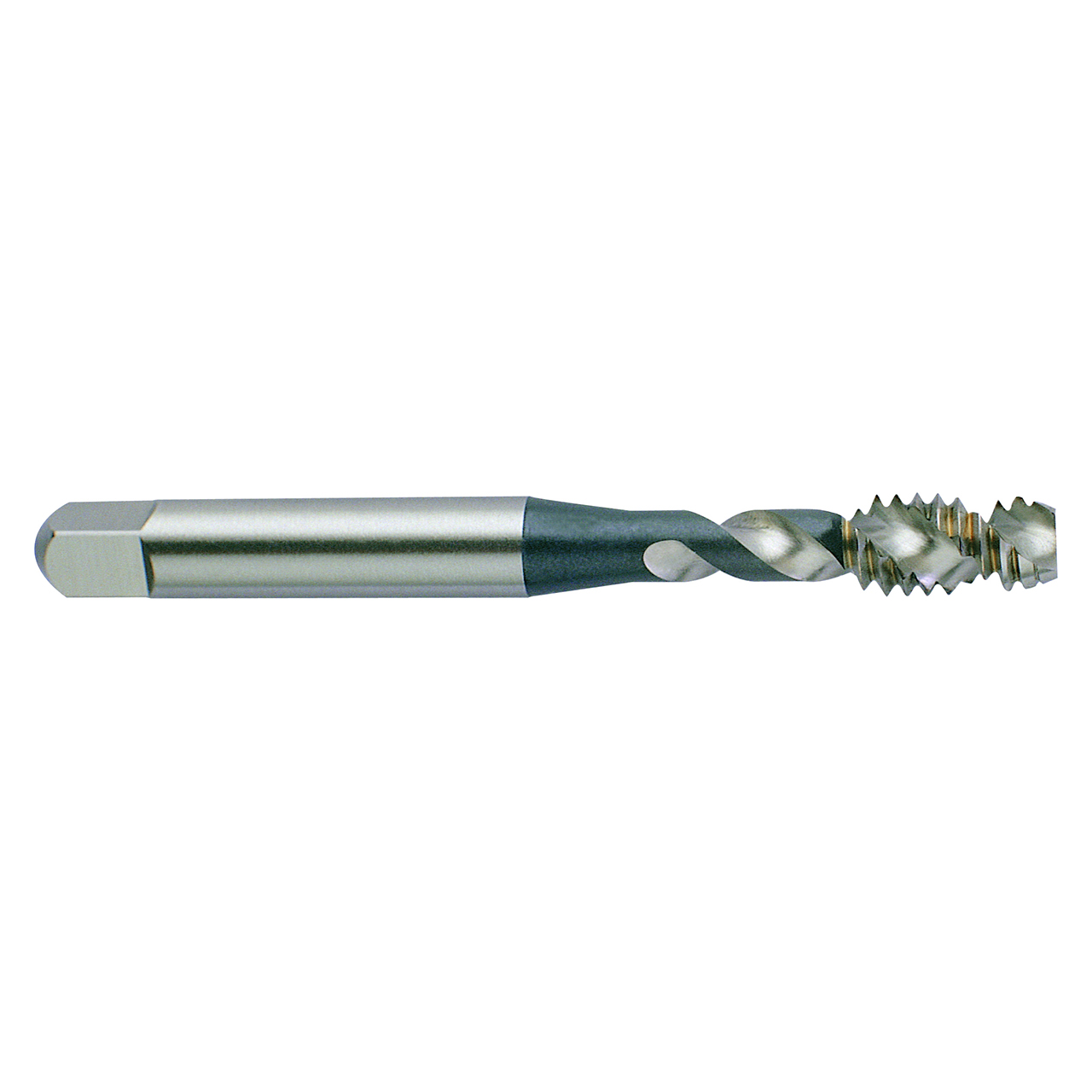

| Product Type | Spiral Flute Thread Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Thread Size (Inch):
1"
Thread Size (Decimal Inch):
1.0000"
Thread Size (mm):
25.40mm
Number of Flutes:
3
Material:
HSSE-V3
Finish/Coating:
Hardslick
Through Coolant:
No
Threads per Inch (TPI):
8 TPI
Overall Length (Decimal Inch):
5.1300"
Overall Length (mm):
130.30mm
