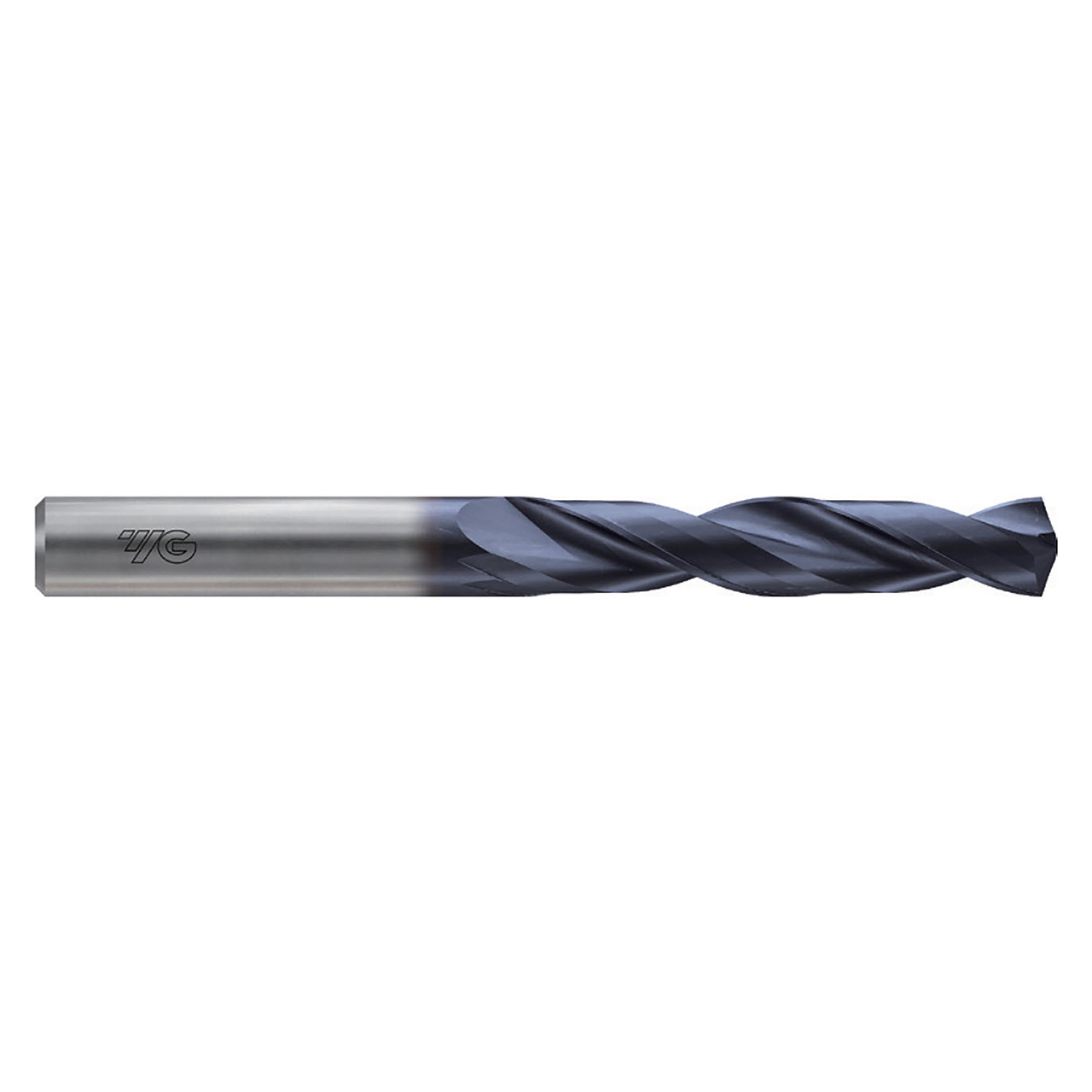

| Manufacturer Part Number | DB510141 |
| Cutting Diameter (Inch) | 5/9" |
| Cutting Diameter (Decimal Inch) | 0.555" |
| Cutting Diameter (mm) | 14.10mm |
| Shank Diameter (Inch) | 17/27" |
| Shank Diameter (Decimal Inch) | 0.630" |
| Shank Diameter (mm) | 16.00mm |
| Flute Length (Inch) | 3-19/71" |
| Flute Length (Decimal Inch) | 3.268" |
| Flute Length (mm) | 83.00mm |
| Overall Length (Inch) | 5-13/55" |
| Overall Length (Decimal Inch) | 5.236" |
| Overall Length (mm) | 133.00mm |
| Number of Flutes | 2 |
| Point Angle (Degree) | 140 Degree |
| Helix Angle (Degree) | 30 Degree |
| Shank Tolerance | h6 |
| Cutting Direction | Right Hand |
| Coolant Pressure | 20 Bar |
| Coating | TiAlN |
| Material | Carbide |
| Product Type | Dream Drill |
