| Manufacturer Part Number | DGE466024 |
| Diameter (Inch) | 3/8" |
| Diameter (Decimal Inch) | 0.3750" |
| Diameter (mm) | 9.53mm |
| Shank Diameter (Inch) | 25/64" |
| Shank Diameter (Decimal Inch) | 0.3906" |
| Shank Diameter (mm) | 9.92mm |
| Flute Length (Inch) | 3-5/32" |
| Flute Length (Decimal Inch) | 3.1563" |
| Flute Length (mm) | 80.17mm |
| Overall Length (Inch) | 5-23/64" |
| Overall Length (Decimal Inch) | 5.3594" |
| Overall Length (mm) | 136.13mm |
| Point Length (Decimal Inch) | 0.1127" |
| Point Length (mm) | 2.86mm |
| Number of Flute | 2 |
| Cutting Direction | Right Hand |
| Point Angle (Degree) | 118 Degree |
| Helix Angle (Degree) | 30 Degree |
| Shank Tolerance | h6 |
| Coolant Pressure | 20 Bar |
| Blank Standard | DIN6537 |
| Hole Tolerance | +0-.00087 |
| Material | Carbide |
| Coating | DLC |

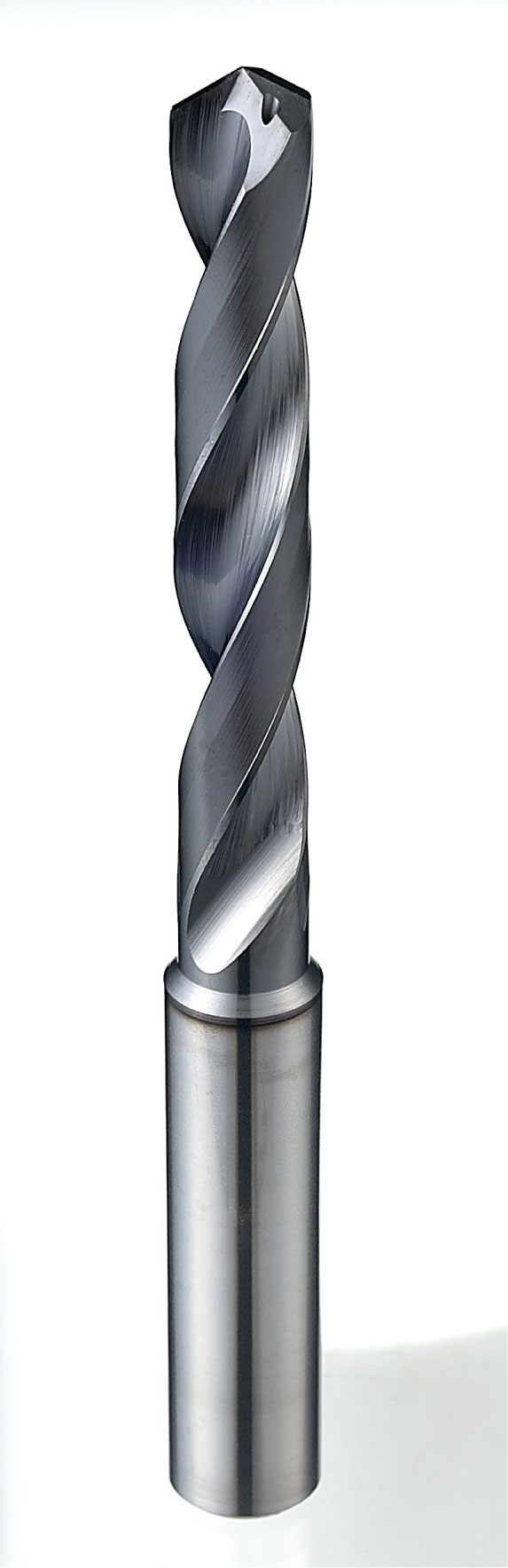

| Product Type | Coolant Fed Drill |
