Product Specifications

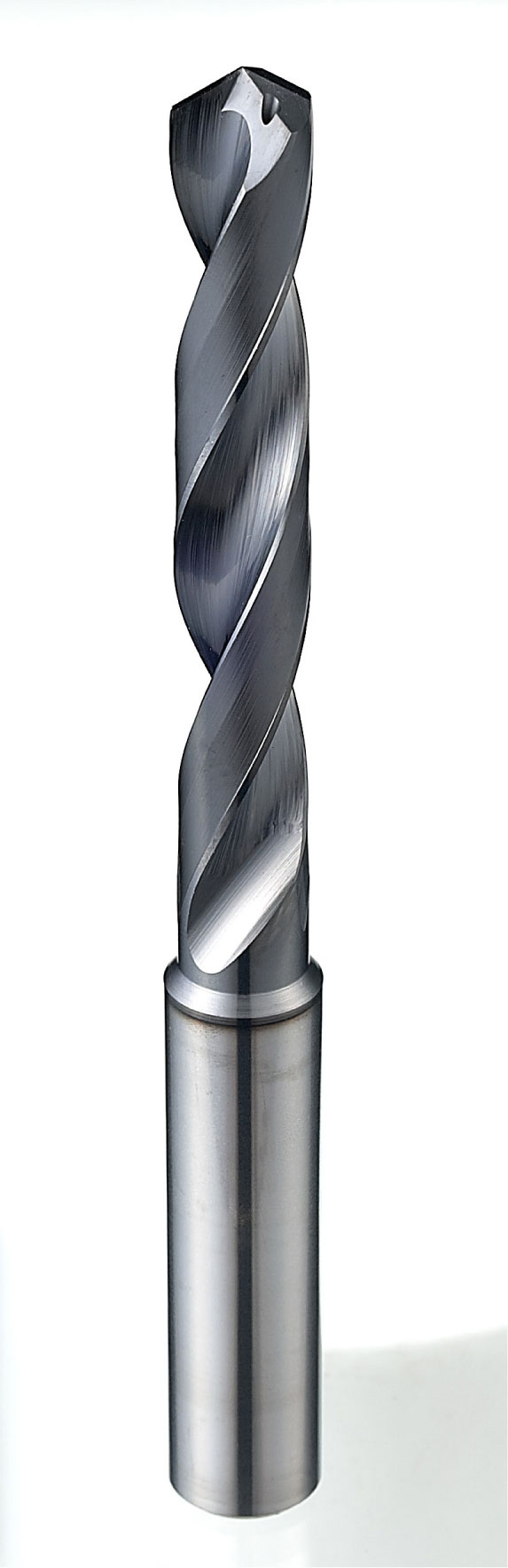

| Manufacturer Part Number | DGE718027 |
| Diameter (Inch) | 27/64" |
| Diameter (Decimal Inch) | 0.4219" |
| Diameter (mm) | 10.72mm |
| Shank Diameter (Inch) | 7/16" |
| Shank Diameter (Decimal Inch) | 0.4375" |
| Shank Diameter (mm) | 11.11mm |
| Flute Length (Inch) | 3-15/32" |
| Flute Length (Decimal Inch) | 3.4688" |
| Flute Length (mm) | 88.11mm |
| Overall Length (Inch) | 5-7/8" |
| Overall Length (Decimal Inch) | 5.8750" |
| Overall Length (mm) | 149.23mm |
| Point Length (Decimal Inch) | 0.1267" |
| Point Length (mm) | 3.22mm |
| Number of Flute | 2 |
| Cutting Direction | Right Hand |
| Point Angle (Degree) | 118 Degree |
| Helix Angle (Degree) | 30 Degree |
| Shank Tolerance | h6 |
| Coolant Pressure | 20 Bar |
| Blank Standard | DIN6537 |
| Hole Tolerance | +0-.00106 |
| Material | Carbide |
| Coating | DLC |
| Product Type | Coolant Fed Drill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Shank Diameter (Inch):
7/16"
Shank Diameter (Decimal Inch):
0.4375"
Shank Diameter (mm):
11.11mm
Flute Length (Inch):
3-15/32"
Flute Length (Decimal Inch):
3.4688"
Flute Length (mm):
88.11mm
Overall Length (Inch):
5-7/8"
Overall Length (Decimal Inch):
5.8750"
Overall Length (mm):
149.23mm
Drill Point Angle:
118 Degree
Finish/Coating:
DLC
Material:
Carbide
