| Manufacturer Part Number | DGN506165 |
| Diameter (Decimal Inch) | 0.6496" |
| Diameter (Inch) | 13/20" |
| Diameter (mm) | 16.50mm |
| Shank Diameter (Decimal Inch) | 0.7087" |
| Shank Diameter (Inch) | 17/24" |
| Shank Diameter (mm) | 18.00mm |
| Flute Length (Decimal Inch) | 2.8740" |
| Flute Length (Inch) | 39631" |
| Flute Length (mm) | 73.00mm |
| Overall Length (Decimal Inch) | 4.8425" |
| Overall Length (Inch) | 4-16/19" |
| Overall Length (mm) | 123.00mm |
| Point Length (Decimal Inch) | 0.1182" |
| Point Length (mm) | 3.00mm |
| Series | DGN506 |
| Number of Flutes | 2 |
| Shank Tolerance | h6 |
| Hole Tolerance | m7 |
| Point Angle (Degree) | 140 Degree |
| Length/Diameter | 3XD |
| Coating | Z-Coated |
| Material | Carbide |
| Coolant Pressure | 20 Bar |
| Blank Standard | DIN6537 |
| Coolant Through | Yes |
| Application | P, K |
| Cutting Direction | Right Hand |

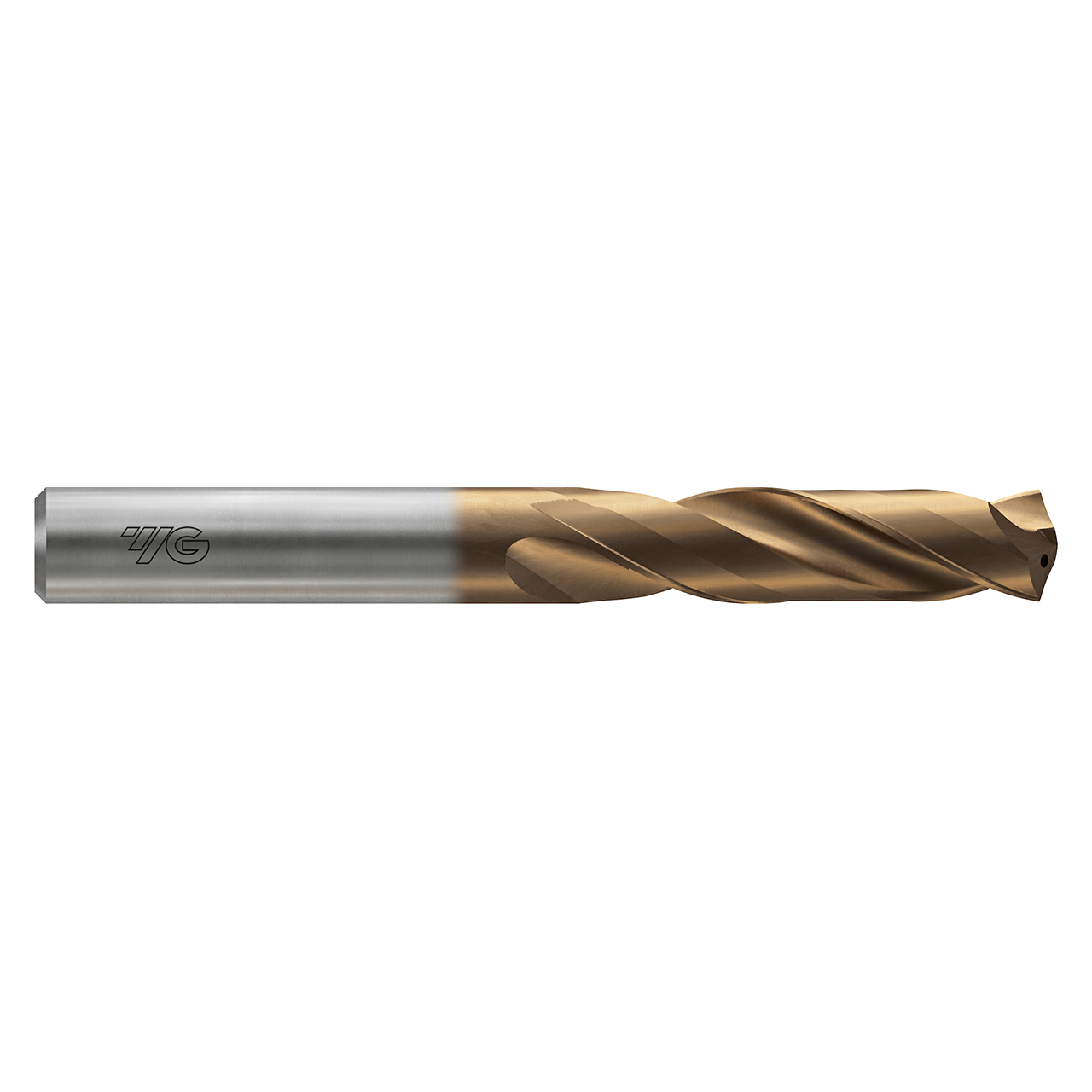

| Type | Dream Drill Pro with Coolant Holes (3xD Short) |
| Product Type | Coolant Fed Drill |
