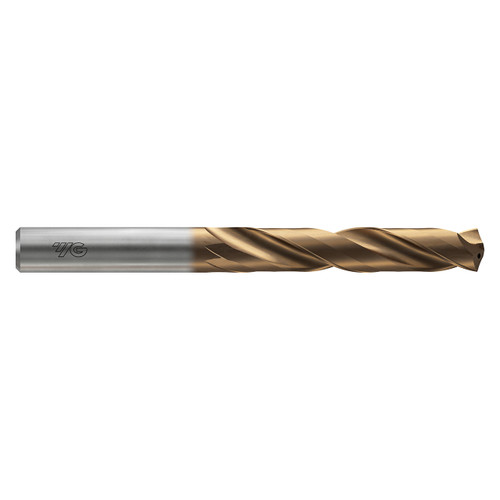

YG1 DGN508008F | 0.1250" Diameter x 0.2362" Shank x 2.5984" OAL 5XD Length 140 Degree Point Angle 2 Flute Z-Coated Carbide Coolant Fed Drill

$127.11 $91.52
(You save $35.59)
Brand:
YG1
Drill Size (Inch):
1/8"
Drill Size (Decimal Inch):
0.1250"
Drill Size (mm):
3.18mm
Drill Point Angle:
140 Degree
Finish/Coating:
Z-Coated
Material:
Carbide
Coolant Through:
Yes
interval quantity:
1
SKU:
10216085
UPC:
Weight:
0.04 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Product Specifications
EDP NumberDGN508008F
Diameter (Decimal Inch)0.0000"
Diameter (Inch)1/8"
Diameter (mm)3.18mm
Shank Diameter (Decimal Inch)0.0000"
Shank Diameter (Inch)13/55"
Shank Diameter (mm)6.00mm
Flute Length (Decimal Inch)0.0000"
Flute Length (Inch)14336"
Flute Length (mm)28.00mm
Overall Length (Decimal Inch)0.0000"
Overall Length (Inch)2-3/5"
Overall Length (mm)66.00mm
Point Length (Decimal Inch)0.0229"
Point Length (mm)0.58mm
SeriesDGN508
Number of Flutes2
Shank Toleranceh6
Hole Tolerancem7
Point Angle (Degree)140 Degree
Length/Diameter5XD
CoatingZ-Coated
MaterialCarbide
Coolant Pressure20 Bar
Blank StandardDIN6537
Coolant ThroughYes
ApplicationP, K
Cutting DirectionRight Hand
TypeDream Drill Pro with Coolant Holes (5XD Long)
Product TypeCoolant Fed Drill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
YG1
Drill Size (Inch):
1/8"
Drill Size (Decimal Inch):
0.1250"
Drill Size (mm):
3.18mm
Drill Point Angle:
140 Degree
Finish/Coating:
Z-Coated
Material:
Carbide
Coolant Through:
Yes
interval quantity:
1
