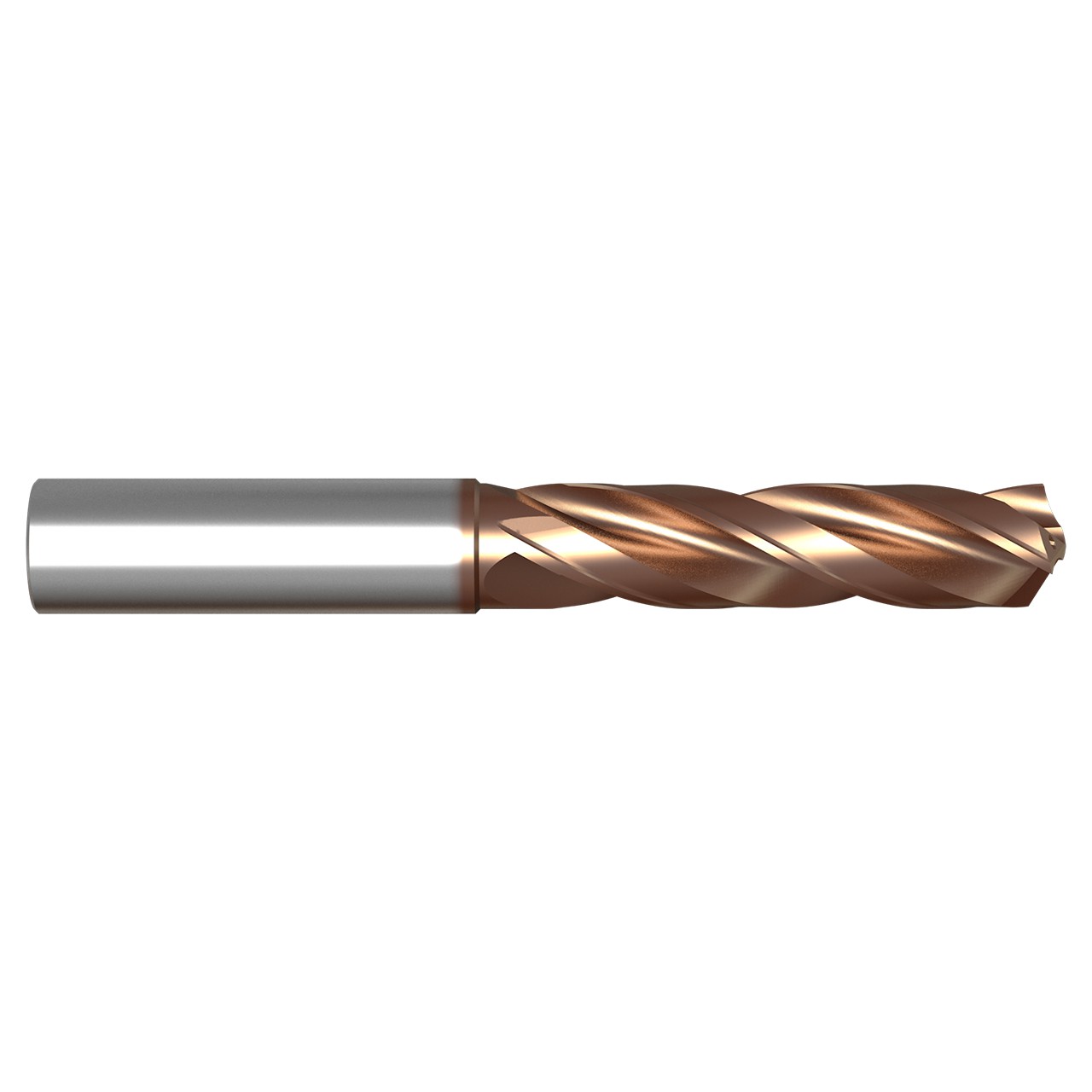

| Manufacturer Part Number | DGR495085 |
| Drill Bit Size (Decimal Inch) | 0.335" |
| Drill Bit Size (mm) | 8.50mm |
| Shank Diameter (Decimal Inch) | 0.394" |
| Shank Diameter (mm) | 10.00mm |
| Flute Length (Decimal Inch) | 2.402" |
| Flute Length (mm) | 61.00mm |
| Overall Length (Decimal Inch) | 4.055" |
| Overall Length (mm) | 103.00mm |
| Point Length (Decimal Inch) | 0.061" |
| Point Length (mm) | 1.55mm |
| Drill Point Angle (Degree) | 140 Degree |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 3 |
| Shank Tolerance | h6 |
| Coolant Through | Yes |
| Coolant Pressure | 20 Bar |
| Blank Standard | DIN6537 |
| Coating | H-Coating |
| Material | Carbide |
| Series | DGR495 |
| Hole Tolerance | m7 |
| Application | P, K |
| Cutting Direction | Right Hand |
| Product Type | Screw Machine Length Drill Bit |
