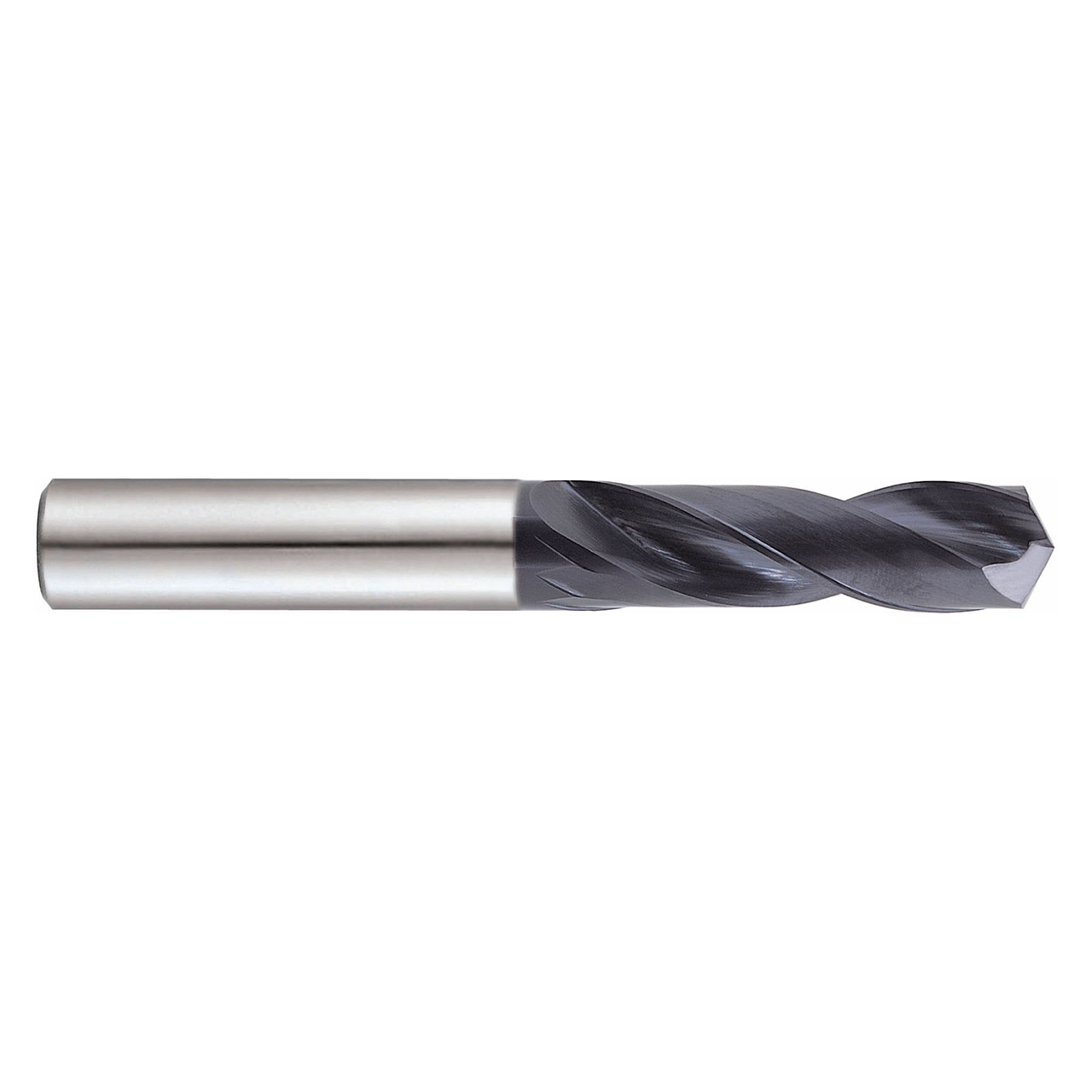

| Manufacturer Part Number | DH404056 |
| Drill Bit Size (Decimal Inch) | 0.221" |
| Drill Bit Size (mm) | 5.60mm |
| Shank Diameter (Decimal Inch) | 0.220" |
| Shank Diameter (mm) | 5.60mm |
| Length of Cut (Decimal Inch) | 1.102" |
| Length of Cut (mm) | 28.00mm |
| Overall Length (Decimal Inch) | 2.598" |
| Overall Length (mm) | 66.00mm |
| Point Length (Decimal Inch) | 0.040" |
| Point Length (mm) | 1.02mm |
| Drill Point Angle (Degree) | 140 Degree |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 2 |
| Length / Diameter | 3 |
| Shank Tolerance | h6 |
| Blank Standard | DIN 6539 |
| Coating | TiAlN |
| Material | Carbide |
| Series | DH404 |
| Hole Tolerance | M7 |
| Application | P |
| Cutting Direction | Right Hand |
| Product Type | Dream Drill Bit |
