Product Specifications
| Diameter (Decimal Inch) | DH404081 |
| Diameter (Decimal Inch) | 0.3200" |
| Diameter (Inch) | 22/69" |
| Diameter (mm) | 8.10mm |
| Shank Diameter (Decimal Inch) | 0.3189" |
| Shank Diameter (Inch) | 22/69" |
| Shank Diameter (mm) | 8.10mm |
| Flute Length (Decimal Inch) | 1.4567" |
| Flute Length (Inch) | 1-37/81" |
| Flute Length (mm) | 37.00mm |
| Overall Length (Decimal Inch) | 3.1102" |
| Overall Length (Inch) | 3-1/9" |
| Overall Length (mm) | 79.00mm |
| Point Length (Decimal Inch) | 0.0580" |
| Point Length (mm) | 1.47mm |
| Point Angle (Degree) | 140 Degree |
| Helix Angle (Degree) | 30 Degree |
| Length/Diameter | 3 |
| Shank Tolerance | h6 |
| Coolant Through | No |
| Hole Tolerance | M7 |
| Blank Standard | DIN 6539 |
| Coating | TiAlN |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P |

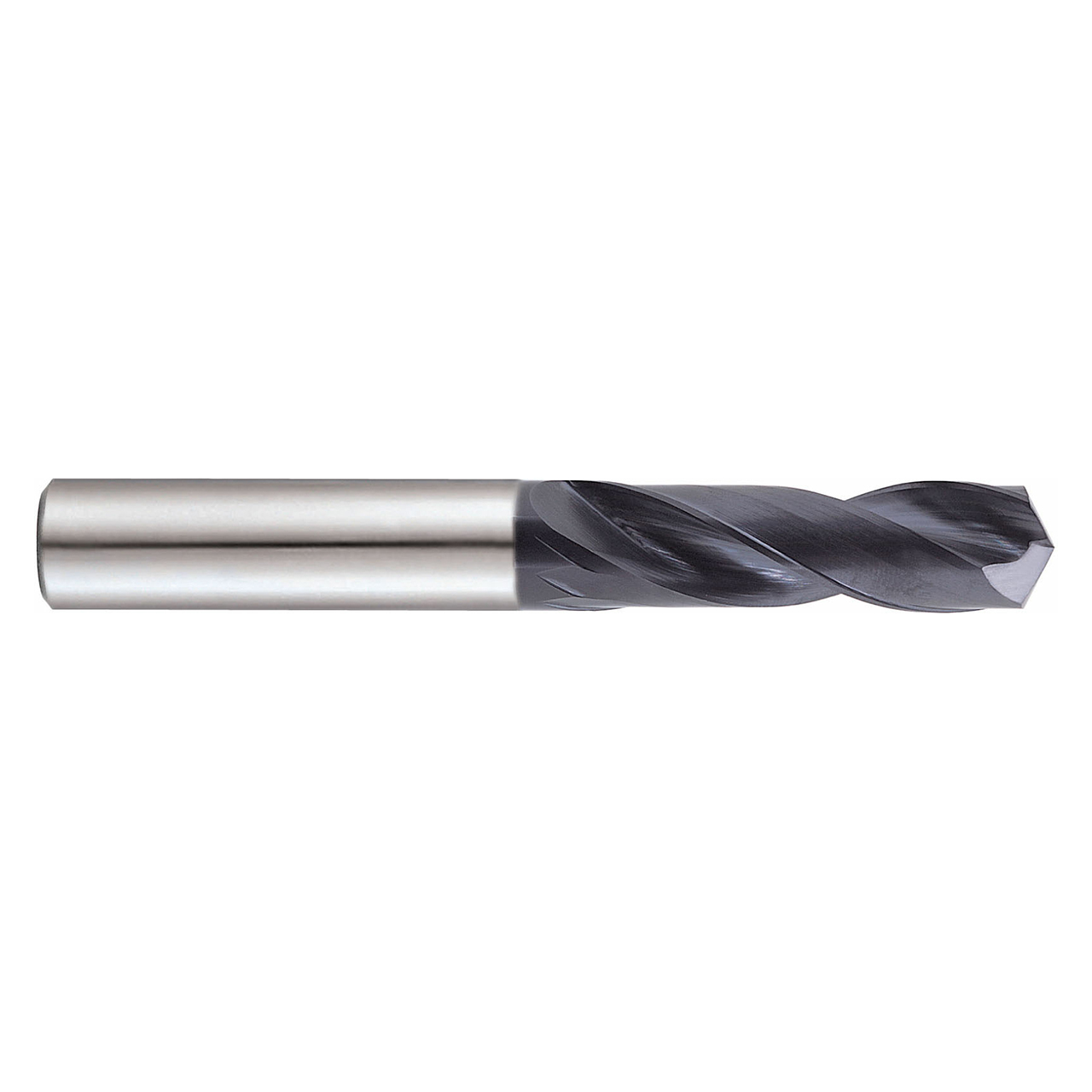

| Type | Dream Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Drill Bit Size (Inch):
22/69"
Drill Bit Size (Decimal Inch):
0.3200"
Drill Bit Size (mm):
8.10mm
Flute Length (Inch):
1-37/81"
Flute Length (Decimal Inch):
1.4567"
Flute Length (mm):
79.00mm
Overall Length (Inch):
3-1/9"
Overall Length (Decimal Inch):
3.1102"
Overall Length (mm):
79.00mm
Material:
Carbide
Finish/Coating:
TiAlN
Cutting Direction:
Right
