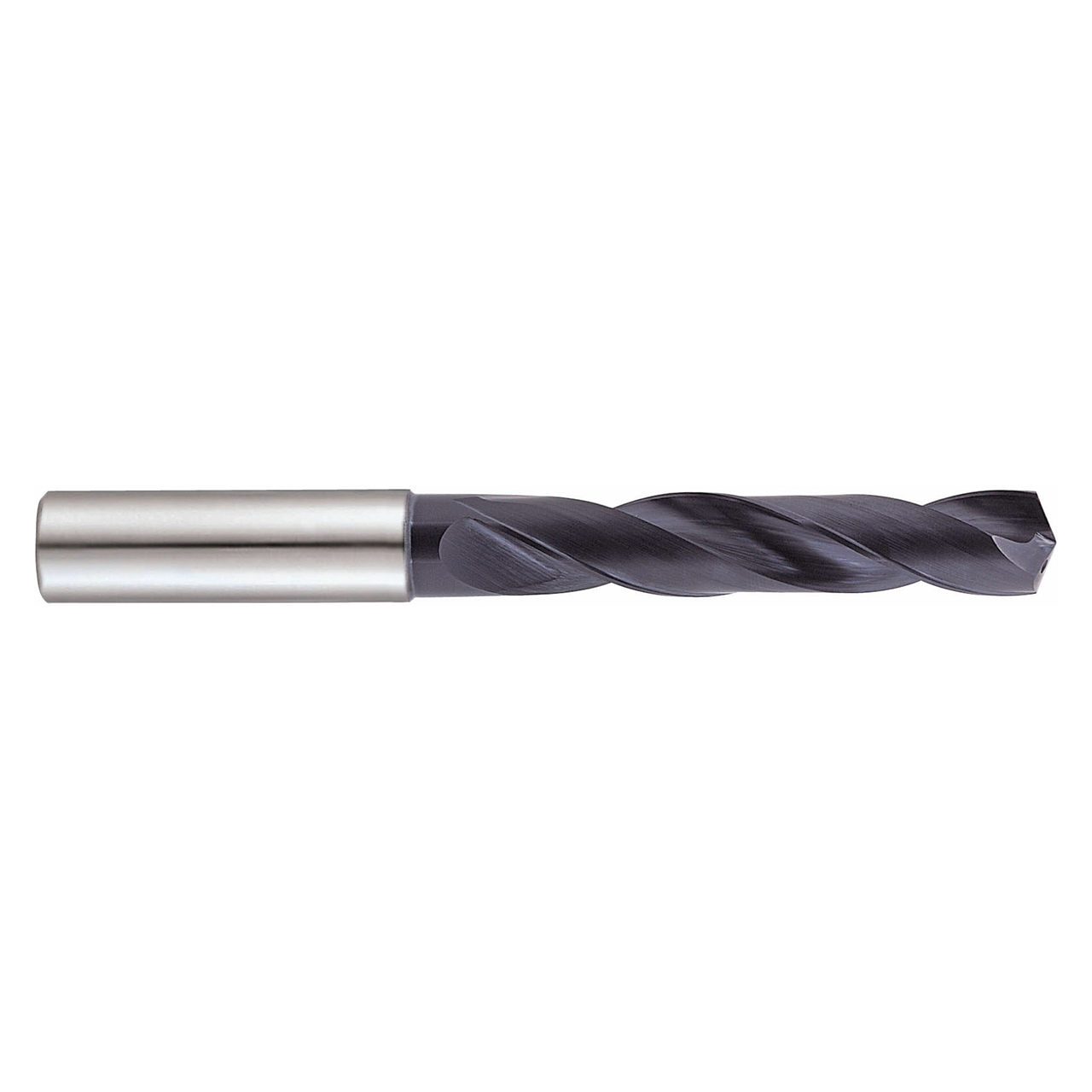

| Manufacturer Part Number | DH408187 |
| Drill Bit Size (Decimal Inch) | 0.736" |
| Drill Bit Size (mm) | 18.70mm |
| Shank Diameter (Decimal Inch) | 0.787" |
| Shank Diameter (mm) | 20.00mm |
| Length of Cut (Decimal Inch) | 3.976" |
| Length of Cut (mm) | 101.00mm |
| Overall Length (Decimal Inch) | 6.024" |
| Overall Length (mm) | 153.00mm |
| Point Length (Decimal Inch) | 0.134" |
| Point Length (mm) | 3.40mm |
| Drill Point Angle (Degree) | 140 Degree |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 2 |
| Length / Diameter | 5 |
| Shank Tolerance | h6 |
| Coolant Through | Yes |
| Coolant Pressure | 20 Bar |
| Blank Standard | DIN 6537 |
| Coating | TiAlN |
| Material | Carbide |
| Series | DH408 |
| Hole Tolerance | m7 |
| Application | P |
| Cutting Direction | Right Hand |
| Product Type | Dream Drill Bit |
