Product Specifications
| # Manufacturer Number | E9992008 |
| Diameter (Decimal Inch) | 0.1250" |
| Diameter (Inch) | 1/8" |
| Diameter (mm) | 3.18mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (mm) | 9.53mm |
| Overall Length (Decimal Inch) | 2.3125" |
| Overall Length (Inch) | 2-5/16" |
| Overall Length (mm) | 58.74mm |
| Length of Cut (Decimal Inch) | 0.3750" |
| Length of Cut (Inch) | 3/8" |
| Length of Cut (mm) | 9.53mm |
| Ball Nose Radius (Decimal Inch) | 0.0625" |
| Ball Nose Radius (Inch) | 1/16" |
| Ball Nose Radius (mm) | 1.59mm |
| Helix Angle (Degree) | 30 Degree |
| Number of Flute | 2 |
| Coating | Bright |
| Material | Premium HSS-PM |
| Cut Type | Center Cut |
| Shank Style | Flat |
| Series | E9992 |
| Cutting Direction | Right |
| Product Type | Ball Nose End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov

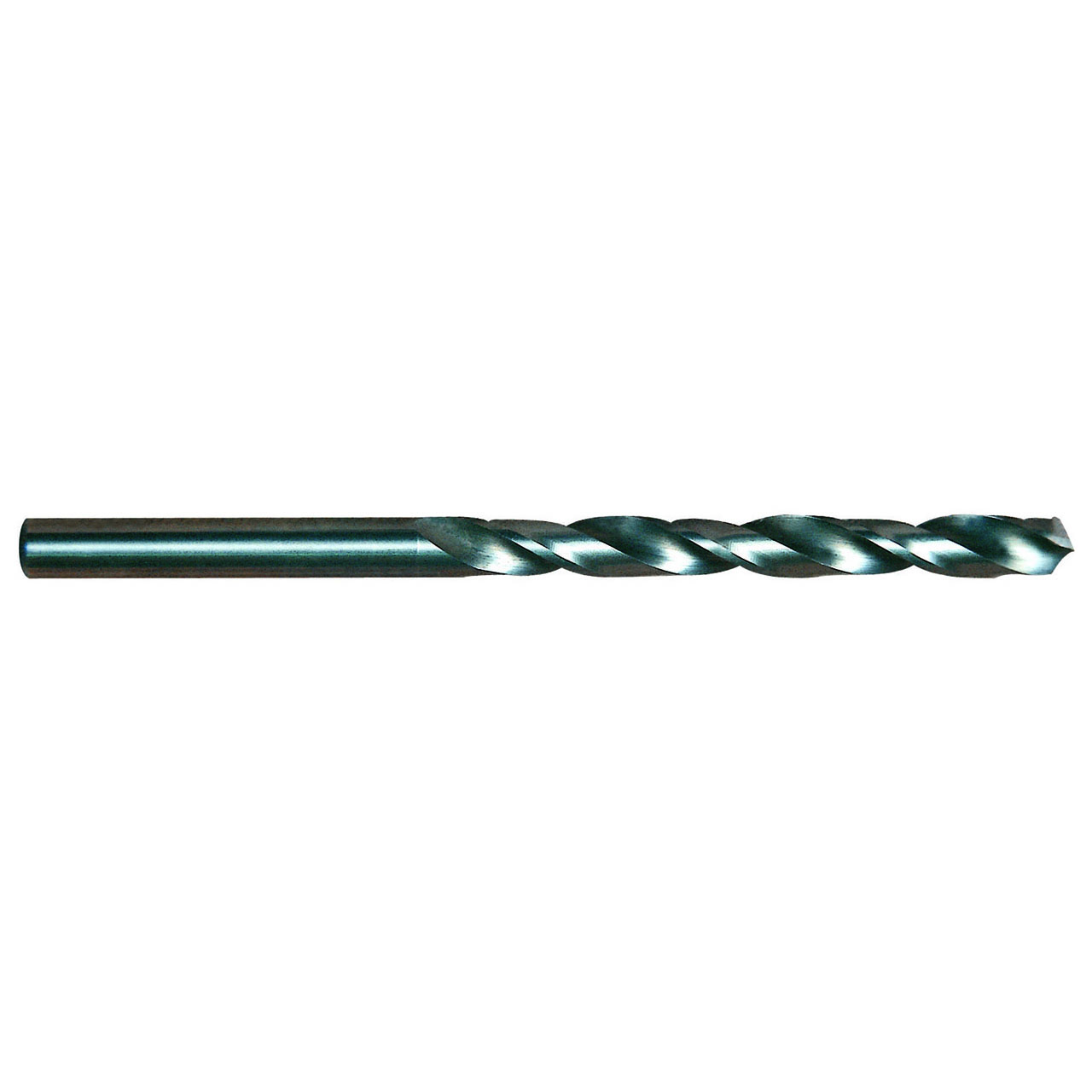

Brand:
YG1
Drill Bit Size (Letter):
X
Drill Point Angle:
118 Degree
Overall Length (Inch):
4-1/2";Overall Length (Decimal Inch)=4.5000""
Overall Length (mm):
114.30mm
Cutting Direction:
Right
Material:
Carbide
Finish/Coating:
TiAlN
Coolant Through:
No
