| Manufacturer Part Number | DH421120 |
| Drill Bit Size (Decimal Inch) | 0.472" |
| Drill Bit Size (mm) | 12.00mm |
| Shank Diameter (Decimal Inch) | 0.472" |
| Shank Diameter (mm) | 12.00mm |
| Length of Cut (Decimal Inch) | 4.488" |
| Length of Cut (mm) | 114.00mm |
| Overall Length (Decimal Inch) | 6.378" |
| Overall Length (mm) | 162.00mm |
| Point Length (Decimal Inch) | 0.086" |
| Point Length (mm) | 2.18mm |
| Drill Point Angle (Degree) | 140 Degree |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 2 |
| Length / Diameter | 8 |
| Shank Tolerance | h6 |
| Coolant Through | Yes |
| Coolant Pressure | 20 Bar |
| Blank Standard | DIN 6537 |
| Coating | TiAlN |
| Material | Carbide |
| Series | DH421 |
| Hole Tolerance | m7 |
| Application | P |
| Cutting Direction | Right Hand |

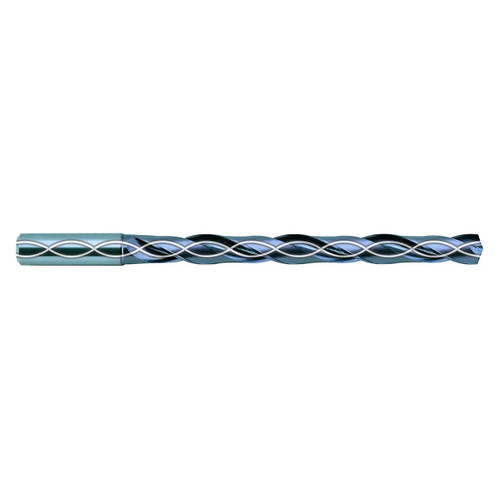

| Product Type | Dream Drill Bit |
