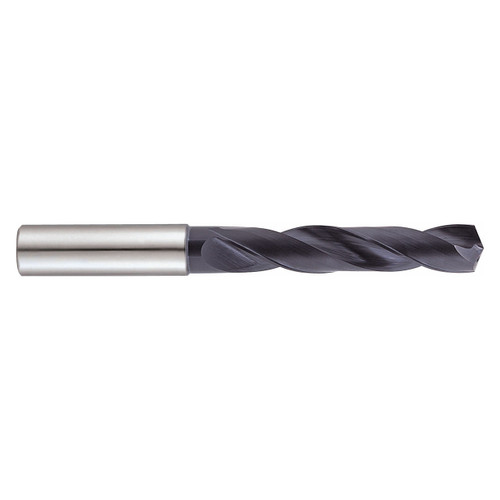

YG1 DH424020 | 0.0800" Diameter x 0.1575" Shank x 2.2441" OAL 2 Flute TiAlN Coated Carbide Dream Drill Bit

$56.04 $40.35
(You save $15.69)
Brand:
YG1
Drill Bit Size (Inch):
7/89"
Drill Bit Size (Decimal Inch):
0.0800"
Drill Bit Size (mm):
2.00mm
Flute Length (Inch):
43/52"
Flute Length (Decimal Inch):
0.8268"
Flute Length (mm):
57.00mm
Overall Length (Inch):
2-21/86"
Overall Length (Decimal Inch):
2.2441"
Overall Length (mm):
57.00mm
Material:
Carbide
Finish/Coating:
TiAlN
Cutting Direction:
Right
interval quantity:
1
SKU:
10029607
UPC:
Weight:
0.02 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Product Specifications
Diameter (Decimal Inch)DH424020
Diameter (Decimal Inch)0.0800"
Diameter (Inch)7/89"
Diameter (mm)2.00mm
Shank Diameter (Decimal Inch)0.1575"
Shank Diameter (Inch)3/19"
Shank Diameter (mm)4.00mm
Flute Length (Decimal Inch)0.8268"
Flute Length (Inch)43/52"
Flute Length (mm)21.00mm
Overall Length (Decimal Inch)2.2441"
Overall Length (Inch)2-21/86"
Overall Length (mm)57.00mm
Point Length (Decimal Inch)0.0143"
Point Length (mm)0.36mm
Point Angle (Degree)140 Degree
Helix Angle (Degree)30 Degree
Length/Diameter3
Shank Toleranceh6
Coolant ThroughNo
Hole Tolerancem7
Blank StandardDIN 6537
CoatingTiAlN
MaterialCarbide
Cutting DirectionRight
ApplicationP
TypeDream Drill Bit
