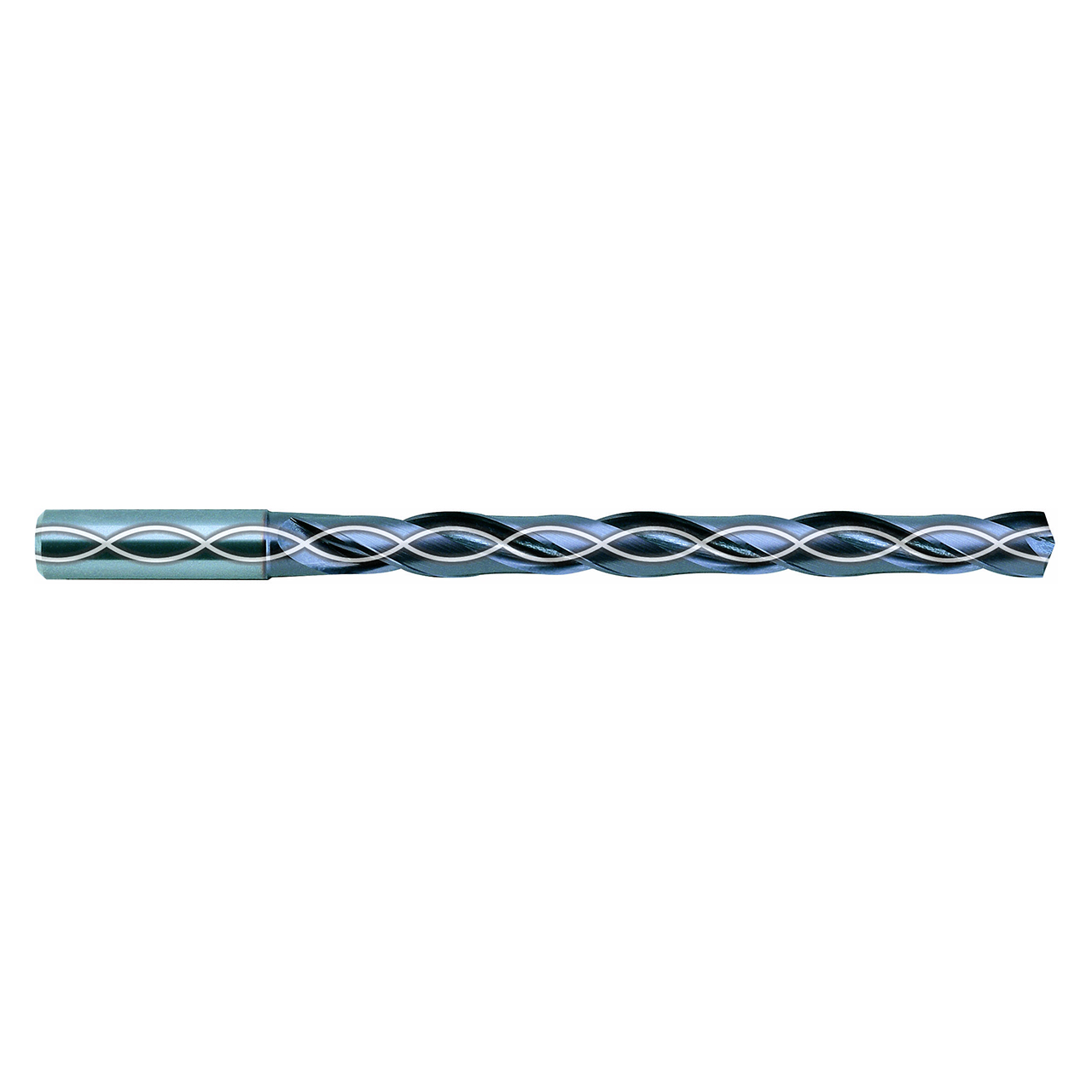

YG1 DH453051 | 0.2008" Diameter x 0.2362" Shank x 3.7402" OAL 2 Flute TiAIN Coated Carbide Dream Drill Bit

$121.39
Brand:
YG1
Drill Bit Size (Inch):
0.2008"
Drill Bit Size (Decimal Inch):
1/5"
Drill Bit Size (mm):
5.10mm
Drill Point Angle:
140 Degree
Flute Length (Inch):
2.4241"
Flute Length (Decimal Inch):
2-21/86"
Flute Length (mm):
57.00mm
Overall Length (Inch):
3.7402"
Overall Length (Decimal Inch):
3-57/77"
Overall Length (mm):
95.00mm
Material:
Carbide
Finish/Coating:
TiAIN
Cutting Direction:
Right
SKU:
10030145
Weight:
0.07 LBS
Shipping:
Free Shipping

Product Specifications
Diameter (Decimal Inch)DH453051
Diameter (Decimal Inch)0.2008"
Diameter (Inch)1/5"
Diameter (mm)5.10mm
Shank Diameter (Decimal Inch)0.2362"
Shank Diameter (Inch)13/55"
Shank Diameter (mm)6.00mm
Flute Length (Decimal Inch)2.4241"
Flute Length (Inch)2-21/86"
Flute Length (mm)57.00mm
Overall Length (Decimal Inch)3.7402"
Overall Length (Inch)3-57/77"
Overall Length (mm)95.00mm
Point Length (Decimal Inch)0.0365"
Point Length (mm)0.93mm
Point Angle140 Degree
Helix Angle30 Degree
Length/Diameter8 X D
Shank Toleranceh6
Coolant ThroughYes
Number of Flutes2
Coolant Pressure20 Bar
Blank StandardDIN 6537
CoatingTiAIN
MaterialCarbide
Hole Tolerancem7
ApplicationPM
Cutting DirectionRight
Product TypeDream Drill Bit
