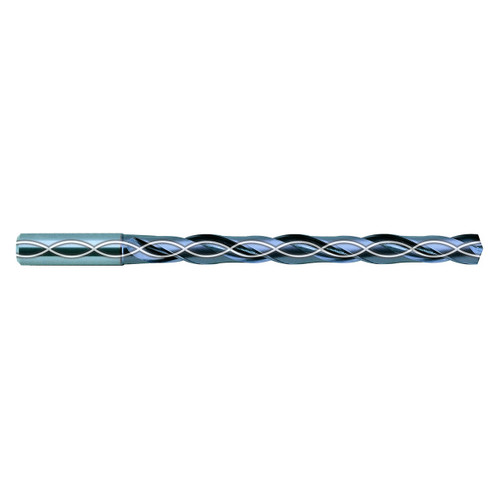

YG1 DH453100 | 10.00mm Diameter x 10.00mm Shank x 95.00mm Flute Length x 142.00mm OAL x 140 Degree Point Angle 2 Flute TiAIN Coated Carbide DH453 Dream Drill Bit

$390.81 $265.75
(You save $125.06)
Brand:
YG1
Drill Bit Size (Decimal Inch):
0.3937"
Drill Bit Size (mm):
10.00mm
Drill Point Angle:
140 Degree
Flute Length (Decimal Inch):
3.7402"
Flute Length (mm):
95.00mm
Overall Length (Decimal Inch):
5.5906"
Overall Length (mm):
142.00mm
Material:
Carbide
Finish/Coating:
TiAIN
Coolant Through:
Yes
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
10030193
UPC:
Weight:
0.24 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Product Specifications
Manufacturer Part NumberDH453100
Diameter (Decimal Inch)0.3937"
Diameter (Inch)37/94"
Diameter (mm)10.00mm
Shank Diameter (Decimal Inch)0.3937"
Shank Diameter (Inch)37/94"
Shank Diameter (mm)10.00mm
Flute Length (Decimal Inch)3.4702"
Flute Length (Inch)3-57/77"
Flute Length (mm)95.00mm
Overall Length (Decimal Inch)5.5906"
Overall Length (Inch)5-13/22"
Overall Length (mm)142.00mm
Point Length (Decimal Inch)0.0716"
Point Length (mm)1.82mm
Point Angle140 Degree
Helix Angle30 Degree
Length/Diameter8 X D
Shank Toleranceh6
Coolant ThroughYes
Number of Flutes2
Coolant Pressure20 Bar
Blank StandardDIN 6537
CoatingTiAIN
MaterialCarbide
Hole Tolerancem7
ApplicationPM
Cutting DirectionRight
Product TypeDream Drill Bit

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
