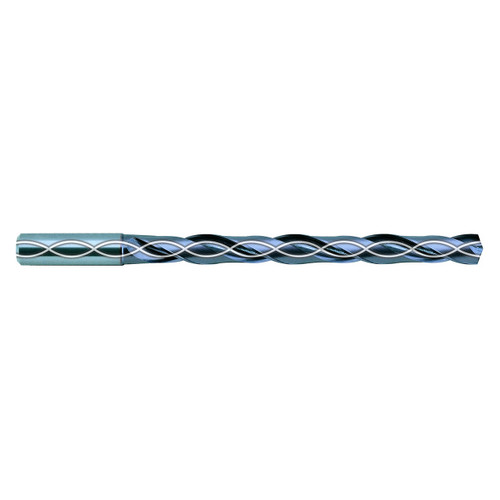

YG1 DH453116 | 0.4567" Diameter x 0.4724" Shank x 6.3780" OAL 2 Flute TiAIN Coated Carbide Dream Drill Bit

$240.17
Brand:
YG1
Drill Bit Size (Inch):
0.4567"
Drill Bit Size (Decimal Inch):
21/46"
Drill Bit Size (mm):
11.60mm
Drill Point Angle:
140 Degree
Flute Length (Inch):
4.8482"
Flute Length (Decimal Inch):
4-21/43"
Flute Length (mm):
114.00mm
Overall Length (Inch):
6.3780"
Overall Length (Decimal Inch):
6-31/82"
Overall Length (mm):
162.00mm
Material:
Carbide
Finish/Coating:
TiAIN
Cutting Direction:
Right
SKU:
10030210
Weight:
0.36 LBS
Shipping:
Free Shipping

Product Specifications
Diameter (Decimal Inch)DH453116
Diameter (Decimal Inch)0.4567"
Diameter (Inch)21/46"
Diameter (mm)11.60mm
Shank Diameter (Decimal Inch)0.4724"
Shank Diameter (Inch)43/91"
Shank Diameter (mm)12.00mm
Flute Length (Decimal Inch)4.8482"
Flute Length (Inch)4-21/43"
Flute Length (mm)114.00mm
Overall Length (Decimal Inch)6.3780"
Overall Length (Inch)6-31/82"
Overall Length (mm)162.00mm
Point Length (Decimal Inch)0.0831"
Point Length (mm)2.11mm
Point Angle140 Degree
Helix Angle30 Degree
Length/Diameter8 X D
Shank Toleranceh6
Coolant ThroughYes
Number of Flutes2
Coolant Pressure20 Bar
Blank StandardDIN 6537
CoatingTiAIN
MaterialCarbide
Hole Tolerancem7
ApplicationPM
Cutting DirectionRight
Product TypeDream Drill Bit
