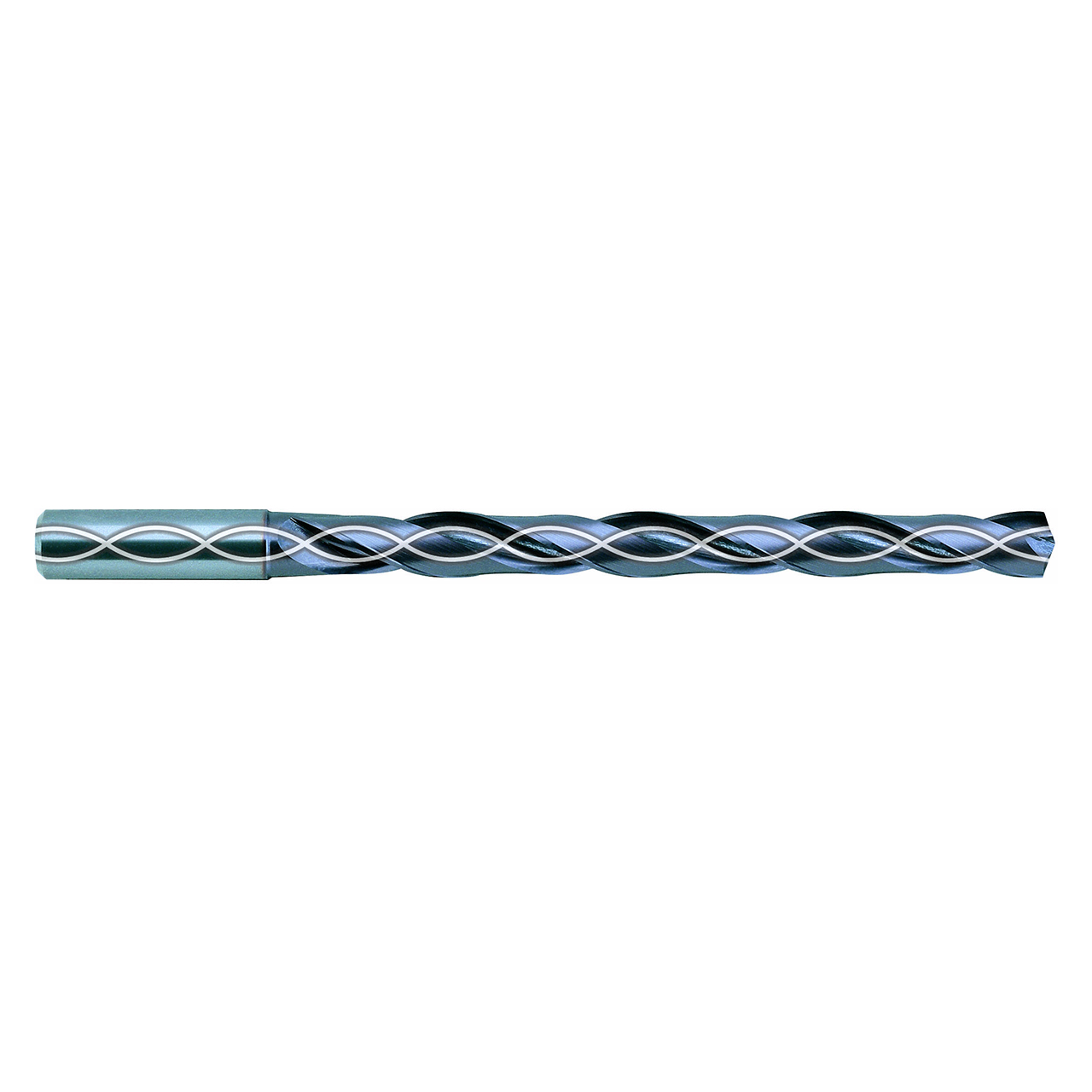

| Manufacturer Part Number | DH453126 |
| Diameter (Decimal Inch) | 0.4961" |
| Diameter (Inch) | 1/2" |
| Diameter (mm) | 12.60mm |
| Shank Diameter (Decimal Inch) | 0.4724" |
| Shank Diameter (Inch) | 43/91" |
| Shank Diameter (mm) | 12.00mm |
| Flute Length (Decimal Inch) | 5.3262" |
| Flute Length (Inch) | 5-13/55" |
| Flute Length (mm) | 133.00mm |
| Overall Length (Decimal Inch) | 7.0079" |
| Overall Length (Inch) | 7" |
| Overall Length (mm) | 178.00mm |
| Point Length (Decimal Inch) | 0.0903" |
| Point Length (mm) | 2.29mm |
| Point Angle | 140 Degree |
| Helix Angle | 30 Degree |
| Length/Diameter | 8 X D |
| Shank Tolerance | h6 |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Coolant Pressure | 20 Bar |
| Blank Standard | DIN 6537 |
| Coating | TiAIN |
| Material | Carbide |
| Hole Tolerance | m7 |
| Application | PM |
| Cutting Direction | Right |
| Product Type | Dream Drill Bit |
