Product Specifications

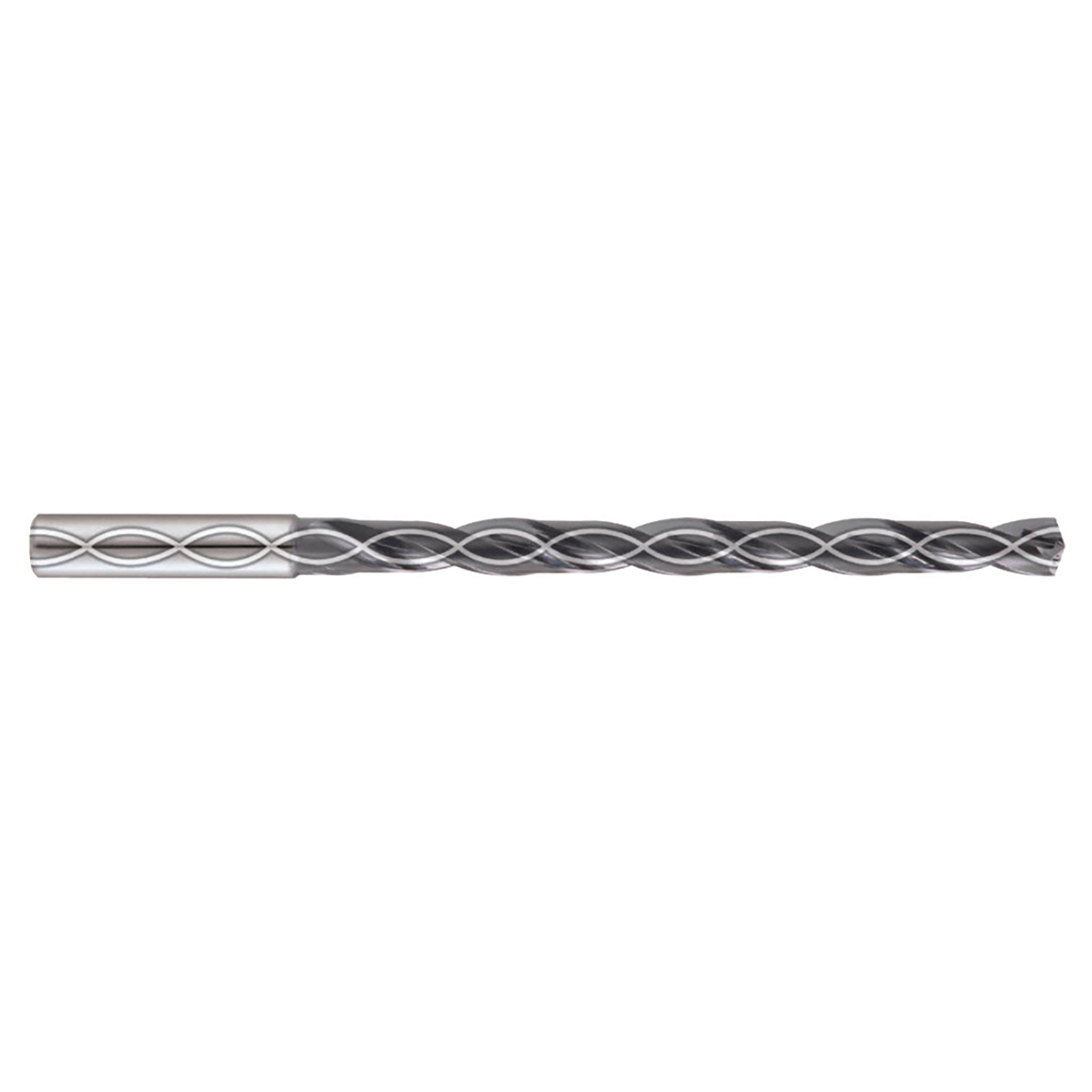

| Manufacturer Part Number | DH453156 |
| Cutting Diameter (Inch) | 43/70" |
| Cutting Diameter (Decimal Inch) | 0.614" |
| Cutting Diameter (mm) | 15.60mm |
| Shank Diameter (Inch) | 17/27" |
| Shank Diameter (Decimal Inch) | 0.629" |
| Shank Diameter (mm) | 16.00mm |
| Flute Length (Inch) | 5-62/63" |
| Flute Length (Decimal Inch) | 5.984" |
| Flute Length (mm) | 152.00mm |
| Overall Length (Inch) | 8" |
| Overall Length (Decimal Inch) | 2.992" |
| Overall Length (mm) | 203.00mm |
| Point Length (Decimal Inch) | 0.111" |
| Point Length (mm) | 2.84mm |
| Number of Flutes | 2 |
| Shank Tolerance | h6 |
| Hole Tolerance | m7 |
| Material | Carbide |
| Coating | TiAIN |
| Product Type | Dream Drill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Finish/Coating:
TiAIN
Material:
Carbide
interval quantity:
1
