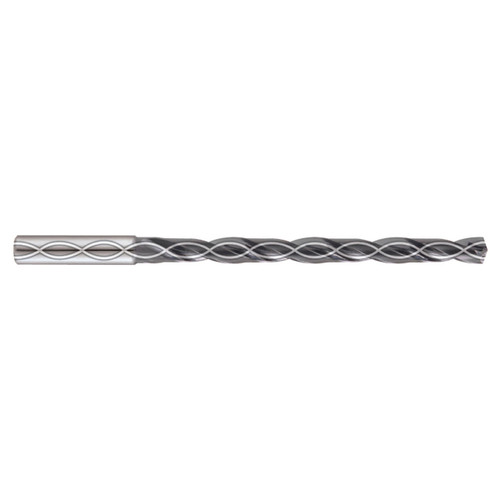

| Manufacturer Part Number | DH453169 |
| Cutting Diameter (Decimal Inch) | 0.665" |
| Cutting Diameter (mm) | 16.90mm |
| Shank Diameter (Decimal Inch) | 0.708" |
| Shank Diameter (mm) | 18.00mm |
| Flute Length (Decimal Inch) | 6.732" |
| Flute Length (mm) | 171.00mm |
| Overall Length (Decimal Inch) | 2.740" |
| Overall Length (mm) | 222.00mm |
| Point Length (Decimal Inch) | 0.121" |
| Point Length (mm) | 3.08mm |
| Number of Flutes | 2 |
| Shank Tolerance | h6 |
| Hole Tolerance | m7 |
| Material | Carbide |
| Coating | TiAIN |
| Product Type | Dream Drill |
