Product Specifications
| Diameter (Decimal Inch) | DH464206 |
| Diameter (Decimal Inch) | 0.2570" |
| Diameter (Inch) | 9/35" |
| Diameter (mm) | 6.53mm |
| Shank Diameter (Decimal Inch) | 0.2656" |
| Shank Diameter (Inch) | 17/64" |
| Shank Diameter (mm) | 6.75mm |
| Flute Length (Decimal Inch) | 2.0231" |
| Flute Length (Inch) | 2-13/64" |
| Flute Length (mm) | 55.96mm |
| Overall Length (Decimal Inch) | 4.2969" |
| Overall Length (Inch) | 4-19/64" |
| Overall Length (mm) | 109.14mm |
| Point Length (Decimal Inch) | 0.0468" |
| Point Length (mm) | 1.19mm |
| Letter Size | F |
| Point Angle | 140 Degree |
| Helix Angle | 30 Degree |
| Length/Diameter | 5 X D |
| Shank Tolerance | -.0001-.0005 |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Coolant Pressure | 20 Bar |
| Coating | TiAIN |
| Material | Carbide |
| Hole Tolerance | +0-.00087 |
| Application | PM |
| Cutting Direction | Right |

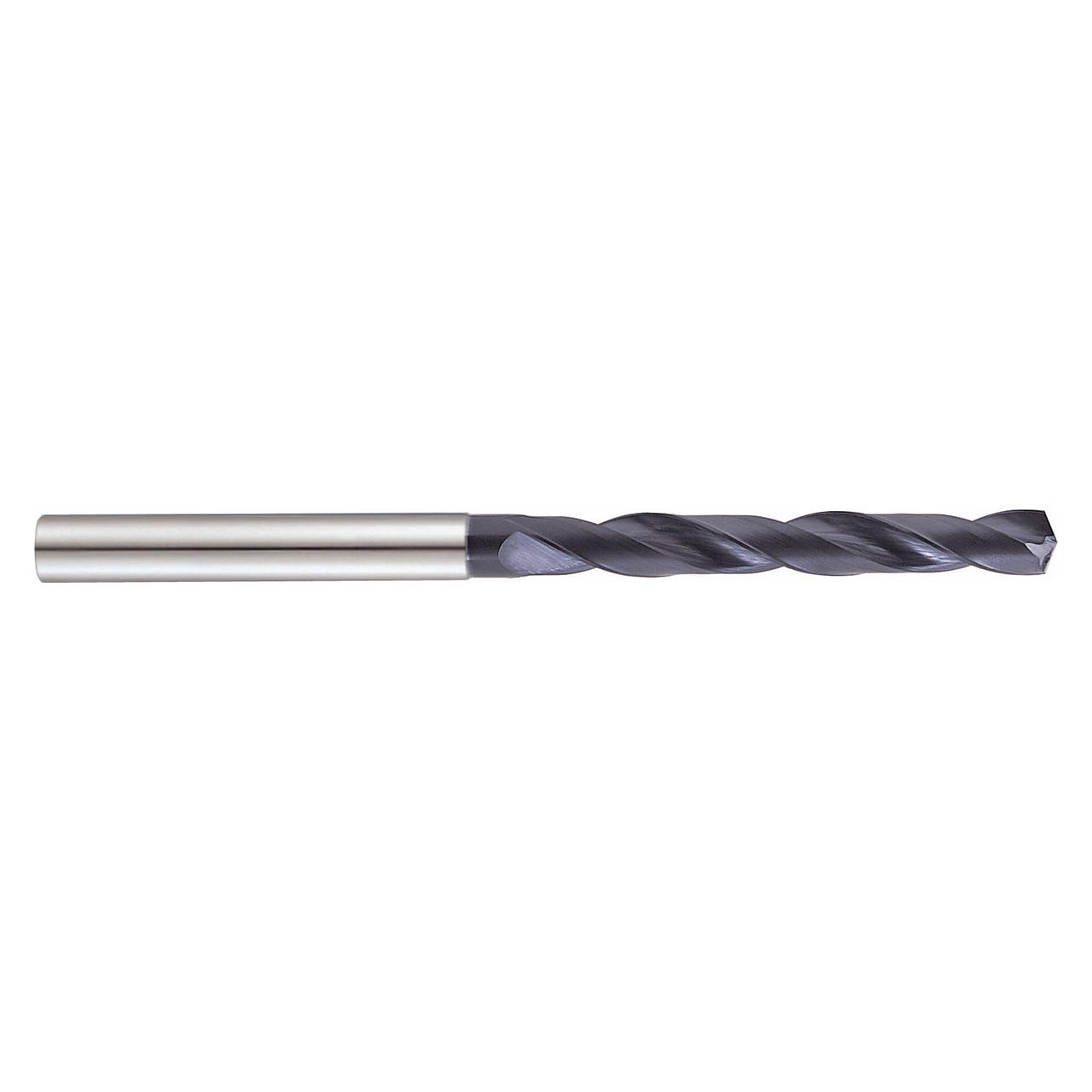

| Product Type | Dream Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Drill Bit Size (Inch):
0.2570"
Drill Bit Size (Decimal Inch):
9/35"
Drill Bit Size (mm):
6.53mm
Drill Bit Size (Letter):
F
Drill Point Angle:
140 Degree
Flute Length (Inch):
2.0231"
Flute Length (Decimal Inch):
2-13/64"
Flute Length (mm):
55.96mm
Overall Length (Inch):
4.2969"
Overall Length (Decimal Inch):
4-19/64"
Overall Length (mm):
109.14mm
Material:
Carbide
Finish/Coating:
TiAIN
Cutting Direction:
Right
