| Manufacturer Part Number | DH515121 |
| Diameter (Decimal Inch) | 0.4764" |
| Diameter (Inch) | 10/21" |
| Diameter (mm) | 12.10mm |
| Shank Diameter (Decimal Inch) | 0.5118" |
| Shank Diameter (Inch) | 22/43" |
| Shank Diameter (mm) | 13.00mm |
| Flute Length (Decimal Inch) | 8.8583" |
| Flute Length (Inch) | 8-6/7" |
| Flute Length (mm) | 225.00mm |
| Overall Length (Decimal Inch) | 11.4567" |
| Overall Length (Inch) | 11-37/81" |
| Overall Length (mm) | 291.00mm |
| Point Length (Decimal Inch) | 0.0867" |
| Point Length (mm) | 2.20mm |
| Number of Flutes | 2 |
| Series | DH515 |
| Point Angle (Degree) | 140 Degree |
| Helix Angle (Degree) | 30 Degree |
| Length/Diameter | 15xD |
| Shank Tolerance | h6 |
| Hole Tolerance | h7 |
| Coating | TiAlN |
| Material | Carbide |
| Coolant Pressure | 45 Bar |
| Coolant Through | Yes |
| Application | P |
| Cutting Direction | Right |

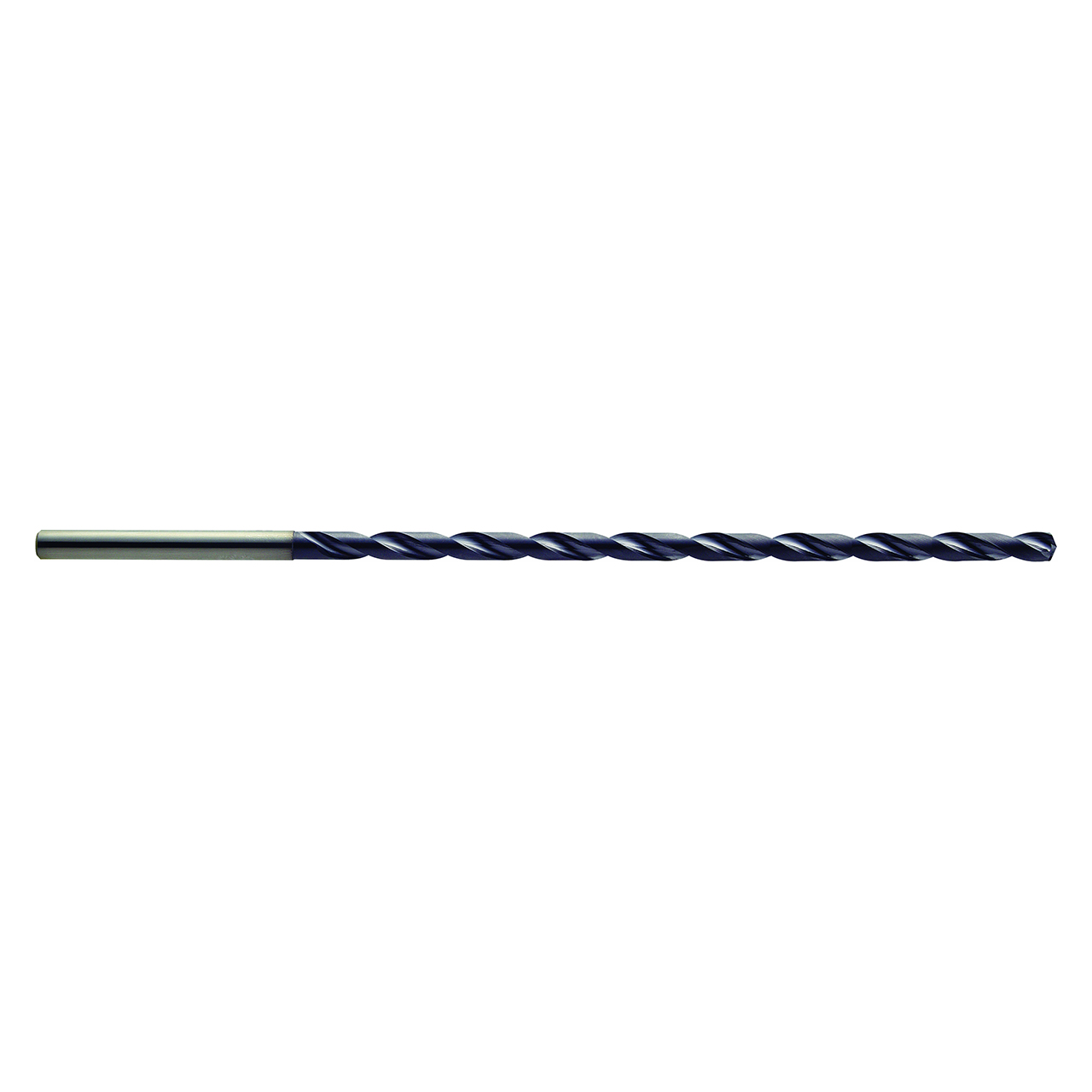

| Product Type | MQL Dream Drill |
