| Manufacturer Part Number | DH714022 |
| Diameter (Decimal Inch) | 0.3438" |
| Diameter (Inch) | 11/32" |
| Diameter (mm) | 8.73mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (mm) | 9.53mm |
| Flute Length (Decimal Inch) | 1.7720" |
| Flute Length (Inch) | 1-44/57" |
| Flute Length (mm) | 45.01mm |
| Overall Length (Decimal Inch) | 3.9370" |
| Overall Length (Inch) | 3-15/16" |
| Overall Length (mm) | 100.00mm |
| Point Length (Decimal Inch) | 0.0626" |
| Point Length (mm) | 1.59mm |
| Point Angle | 140 Degree |
| Helix Angle | 30 Degree |
| Length/Diameter | 3 X D |
| Shank Tolerance | -.0001-.0005 |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Coolant Pressure | 20 Bar |
| Coating | TiAIN |
| Material | Carbide |
| Hole Tolerance | +0-.00087 |
| Application | PM |
| Cutting Direction | Right |

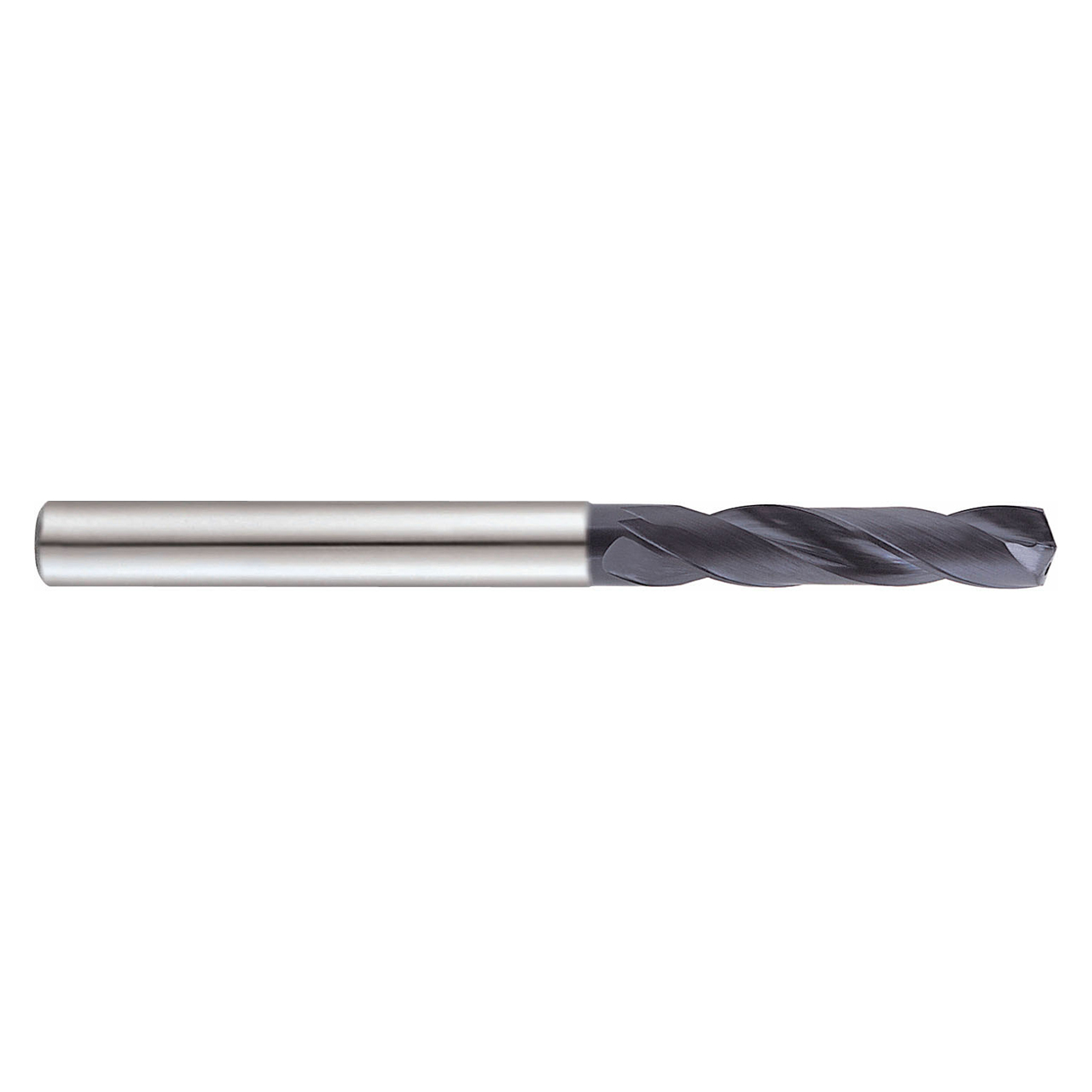

| Product Type | Dream Drill Bit |
