Product Specifications
| Diameter (Decimal Inch) | DH715024 |
| Diameter (Decimal Inch) | 0.3750" |
| Diameter (Inch) | 3/8" |
| Diameter (mm) | 9.53mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (mm) | 9.53mm |
| Flute Length (Decimal Inch) | 3.5163" |
| Flute Length (Inch) | 3-5/32" |
| Flute Length (mm) | 80.17mm |
| Overall Length (Decimal Inch) | 5.3594" |
| Overall Length (Inch) | 5-23/64" |
| Overall Length (mm) | 136.13mm |
| Point Length (Decimal Inch) | 0.0682" |
| Point Length (mm) | 1.73mm |
| Point Angle | 140 Degree |
| Helix Angle | 30 Degree |
| Length/Diameter | 5 X D |
| Shank Tolerance | -.0001-.0005 |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Coolant Pressure | 20 Bar |
| Coating | TiAIN |
| Material | Carbide |
| Hole Tolerance | +0-.00087 |
| Application | PM |
| Cutting Direction | Right |

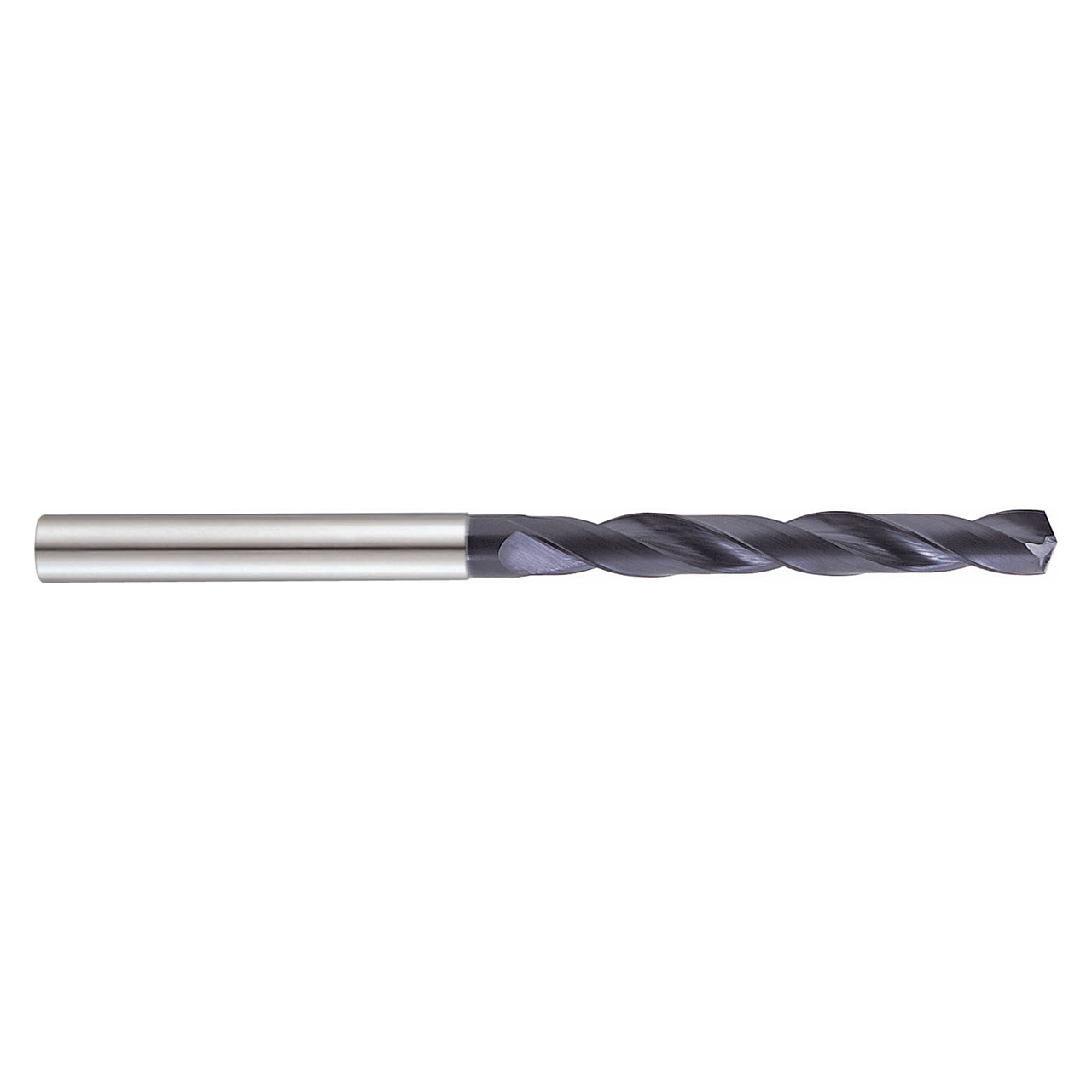

| Product Type | Dream Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Drill Bit Size (Inch):
0.3750"
Drill Bit Size (Decimal Inch):
3/8"
Drill Bit Size (mm):
9.53mm
Drill Point Angle:
140 Degree
Flute Length (Inch):
3.5163"
Flute Length (Decimal Inch):
3-5/32"
Flute Length (mm):
80.17mm
Overall Length (Inch):
5.3594"
Overall Length (Decimal Inch):
5-23/64"
Overall Length (mm):
136.13mm
Material:
Carbide
Finish/Coating:
TiAIN
Cutting Direction:
Right
