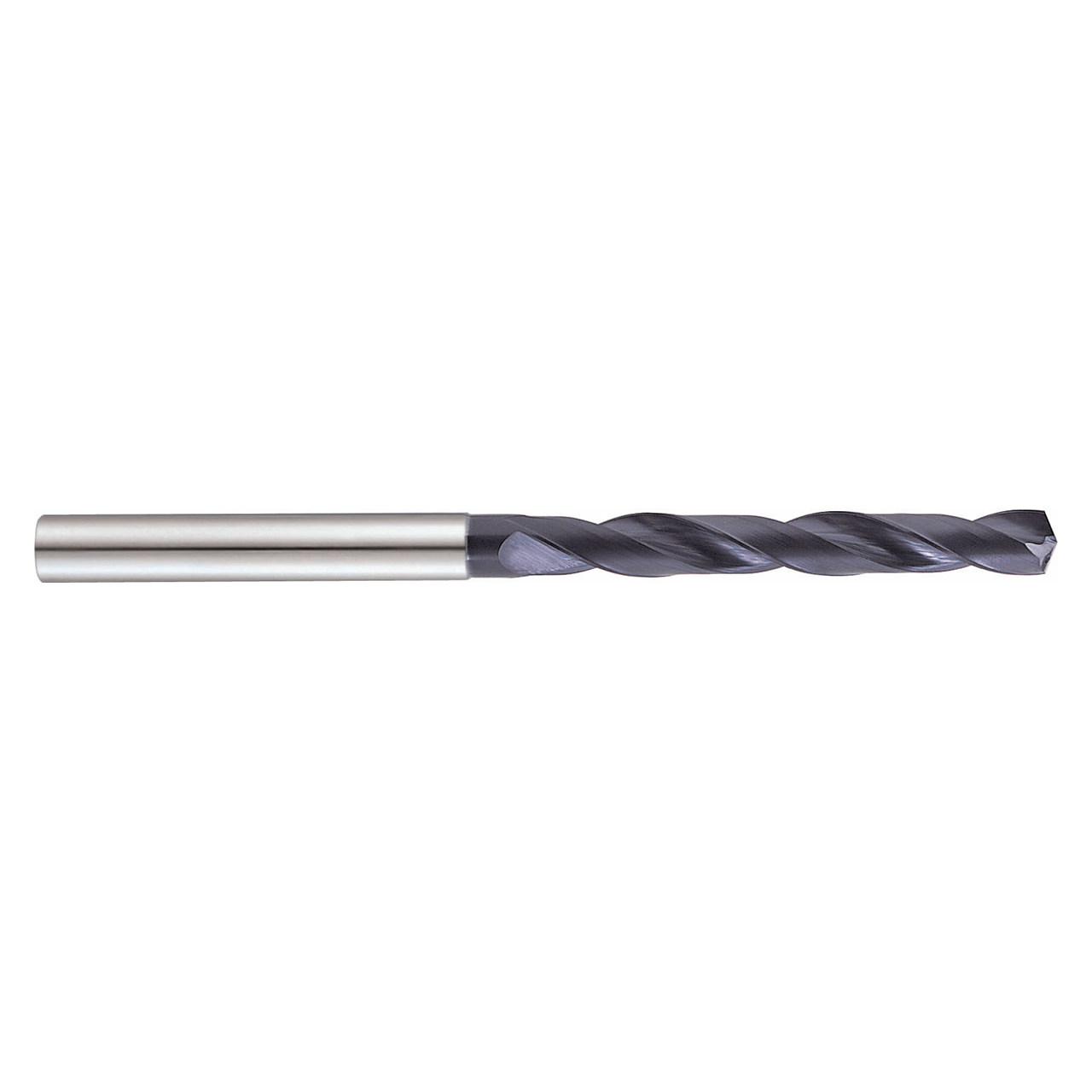

| Manufacturer Part Number | DH722021 |
| Drill Bit Size (Inch) | 21/64" |
| Drill Bit Size (Decimal Inch) | 0.328" |
| Drill Bit Size (mm) | 8.33mm |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (Decimal Inch) | 0.375" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Decimal Inch) | 2.672" |
| Length of Cut (mm) | 67.87mm |
| Overall Length (Decimal Inch) | 5.000" |
| Overall Length (mm) | 127.00mm |
| Point Length (Decimal Inch) | 0.060" |
| Point Length (mm) | 1.52mm |
| Drill Point Angle (Degree) | 140 Degree |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 2 |
| Length / Diameter | 5 |
| Shank Tolerance | h6 |
| Coating | TiAlN |
| Material | Carbide |
| Series | DH722 |
| Hole Tolerance | +0-.00087 |
| Application | P |
| Cutting Direction | Right Hand |
| Product Type | Dream Drill Bit |
