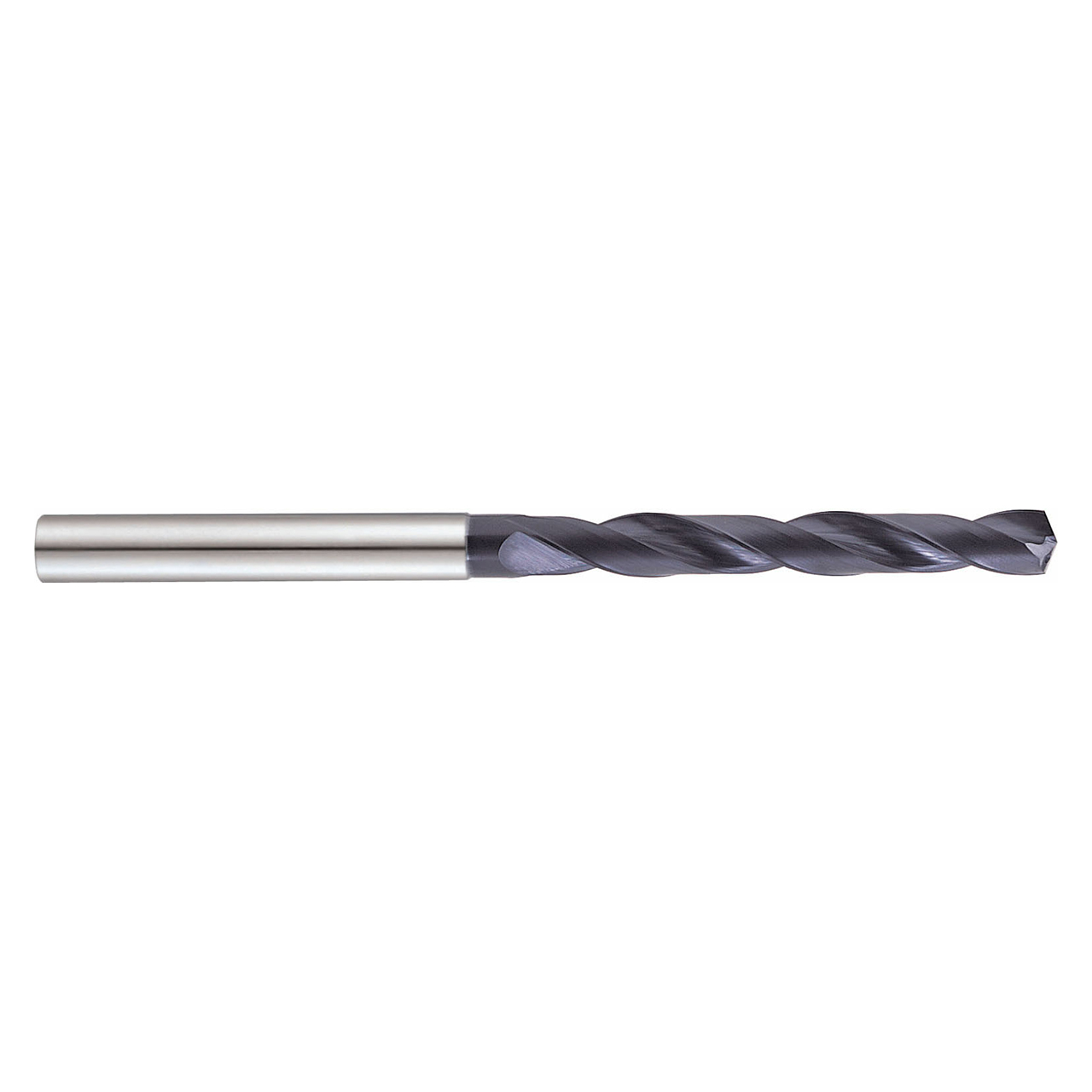

| Manufacturer Part Number | DH722032 |
| Drill Bit Size (Inch) | 1/2" |
| Drill Bit Size (Decimal Inch) | 0.500" |
| Drill Bit Size (mm) | 12.70mm |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (Decimal Inch) | 0.500" |
| Shank Diameter (mm) | 12.70mm |
| Length of Cut (Inch) | 4-3/32" |
| Length of Cut (Decimal Inch) | 4.094" |
| Length of Cut (mm) | 103.98mm |
| Overall Length (Inch) | 6-37/64" |
| Overall Length (Decimal Inch) | 6.578" |
| Overall Length (mm) | 167.08mm |
| Point Length (Decimal Inch) | 0.091" |
| Point Length (mm) | 2.31mm |
| Drill Point Angle (Degree) | 140 Degree |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 2 |
| Length / Diameter | 5 |
| Shank Tolerance | h6 |
| Coating | TiAlN |
| Material | Carbide |
| Series | DH722 |
| Hole Tolerance | +0-.00106 |
| Application | P |
| Cutting Direction | Right Hand |
| Product Type | Dream Drill Bit |
