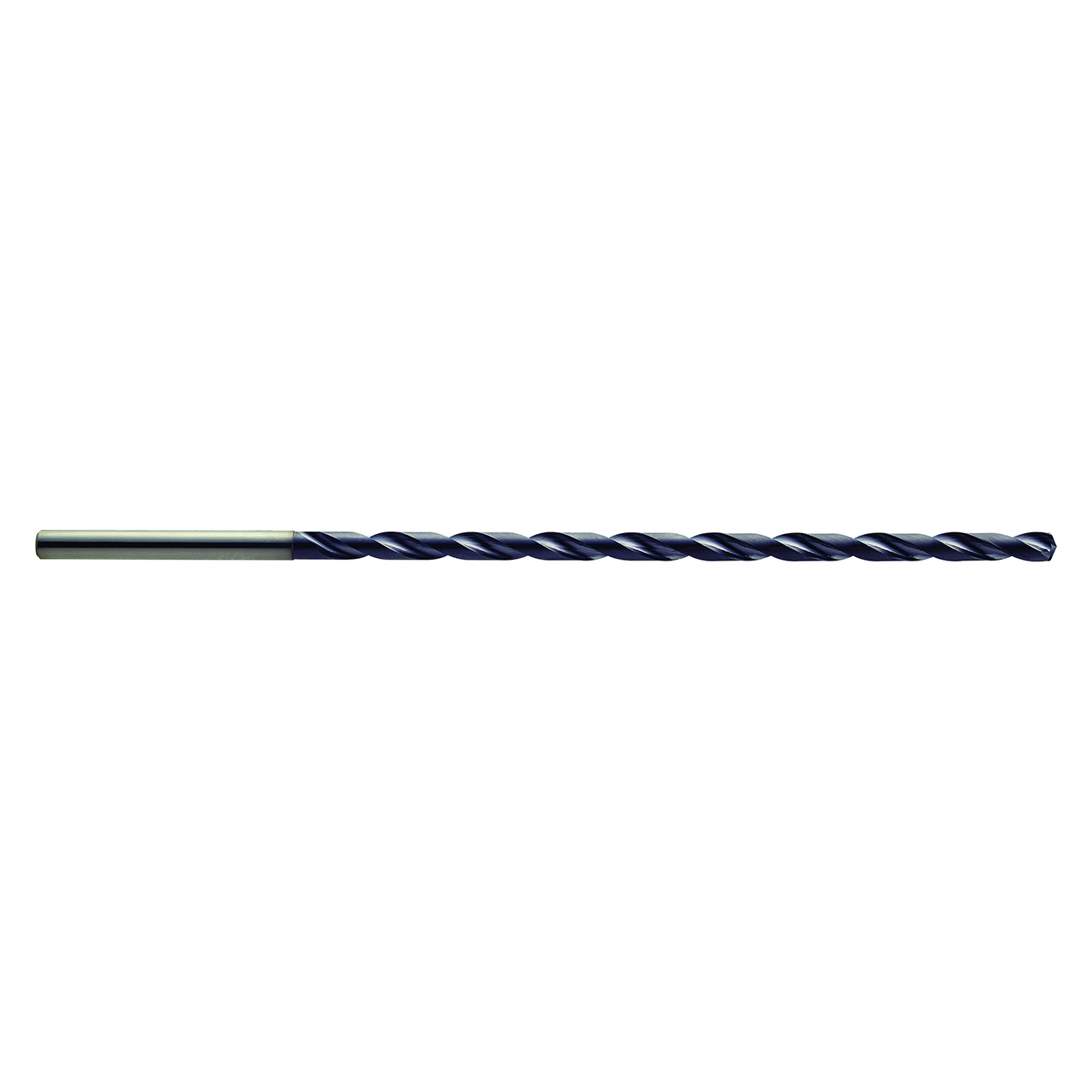

YG1 DHM15040 | 0.1575" Diameter x 0.2362" Shank x 4.4488" OAL 140 Degree Point Angle 2 Flute TiAlN Coated Carbide MQL Dream Drill

$260.25 $187.38
(You save $72.87)
Brand:
YG1
Drill Bit Size (Inch):
3/19"
Drill Bit Size (Decimal Inch):
0.1575"
Drill Bit Size (mm):
4.00mm
Material:
Carbide
Finish/Coating:
TiAlN
Flute Length (Inch):
2-7/8"
Flute Length (Decimal Inch):
2.8740"
Flute Length (mm):
73.00mm
Drill Point Angle:
140 Degree
Coolant Through:
Yes
interval quantity:
1
SKU:
10030934
UPC:
Weight:
0.09 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Product Specifications
EDP NumberDHM15040
Diameter (Decimal Inch)0.1575"
Diameter (Inch)3/19"
Diameter (mm)4.00mm
Shank Diameter (Decimal Inch)0.2362"
Shank Diameter (Inch)13/55"
Shank Diameter (mm)6.00mm
Flute Length (Decimal Inch)2.8740"
Flute Length (Inch)2-7/8"
Flute Length (mm)73.00mm
Overall Length (Decimal Inch)4.4488"
Overall Length (Inch)4-22/49"
Overall Length (mm)113.00mm
Point Length (Decimal Inch)0.0287"
Point Length (mm)0.73mm
Number of Flutes2
SeriesDHM15
Point Angle (Degree)140 Degree
Helix Angle (Degree)30 Degree
Length/Diameter15xD
Shank Toleranceh6
Hole Toleranceh7
CoatingTiAlN
MaterialCarbide
Coolant Pressure45 Bar
Coolant ThroughYes
ApplicationP
Cutting DirectionRight
Product TypeMQL Dream Drill
