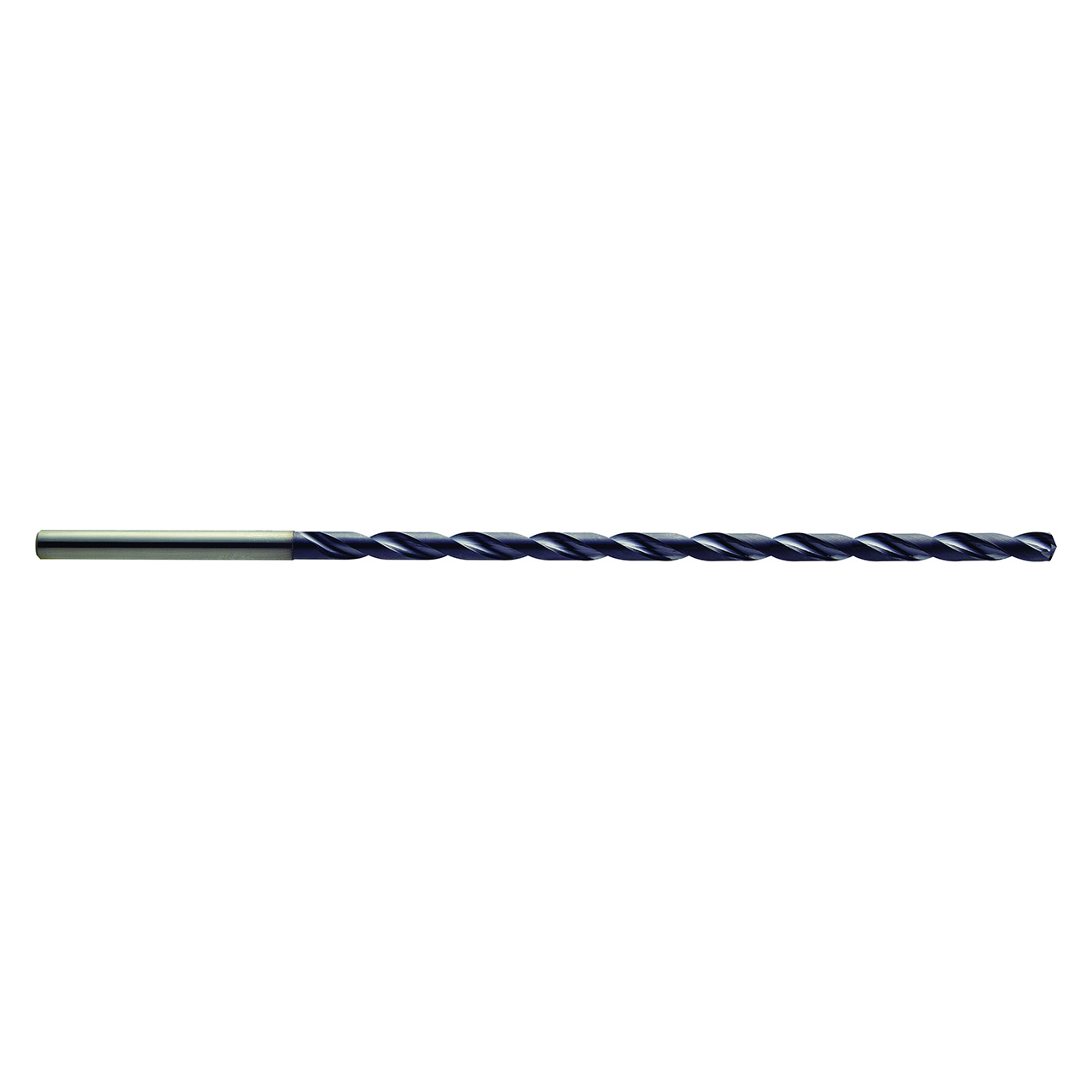

| Manufacturer Part Number | DHM15045 |
| Diameter (Decimal Inch) | 0.1772" |
| Diameter (Inch) | 14/79" |
| Diameter (mm) | 4.50mm |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (Inch) | 13/55" |
| Shank Diameter (mm) | 6.00mm |
| Flute Length (Decimal Inch) | 3.2283" |
| Flute Length (Inch) | 3-8/35" |
| Flute Length (mm) | 82.00mm |
| Overall Length (Decimal Inch) | 4.8031" |
| Overall Length (Inch) | 4-49/61" |
| Overall Length (mm) | 122.00mm |
| Point Length (Decimal Inch) | 0.0322" |
| Point Length (mm) | 0.82mm |
| Number of Flutes | 2 |
| Series | DHM15 |
| Point Angle (Degree) | 140 Degree |
| Helix Angle (Degree) | 30 Degree |
| Length/Diameter | 15xD |
| Shank Tolerance | h6 |
| Hole Tolerance | h7 |
| Coating | TiAlN |
| Material | Carbide |
| Coolant Pressure | 45 Bar |
| Coolant Through | Yes |
| Application | P |
| Cutting Direction | Right |
| Product Type | MQL Dream Drill |
