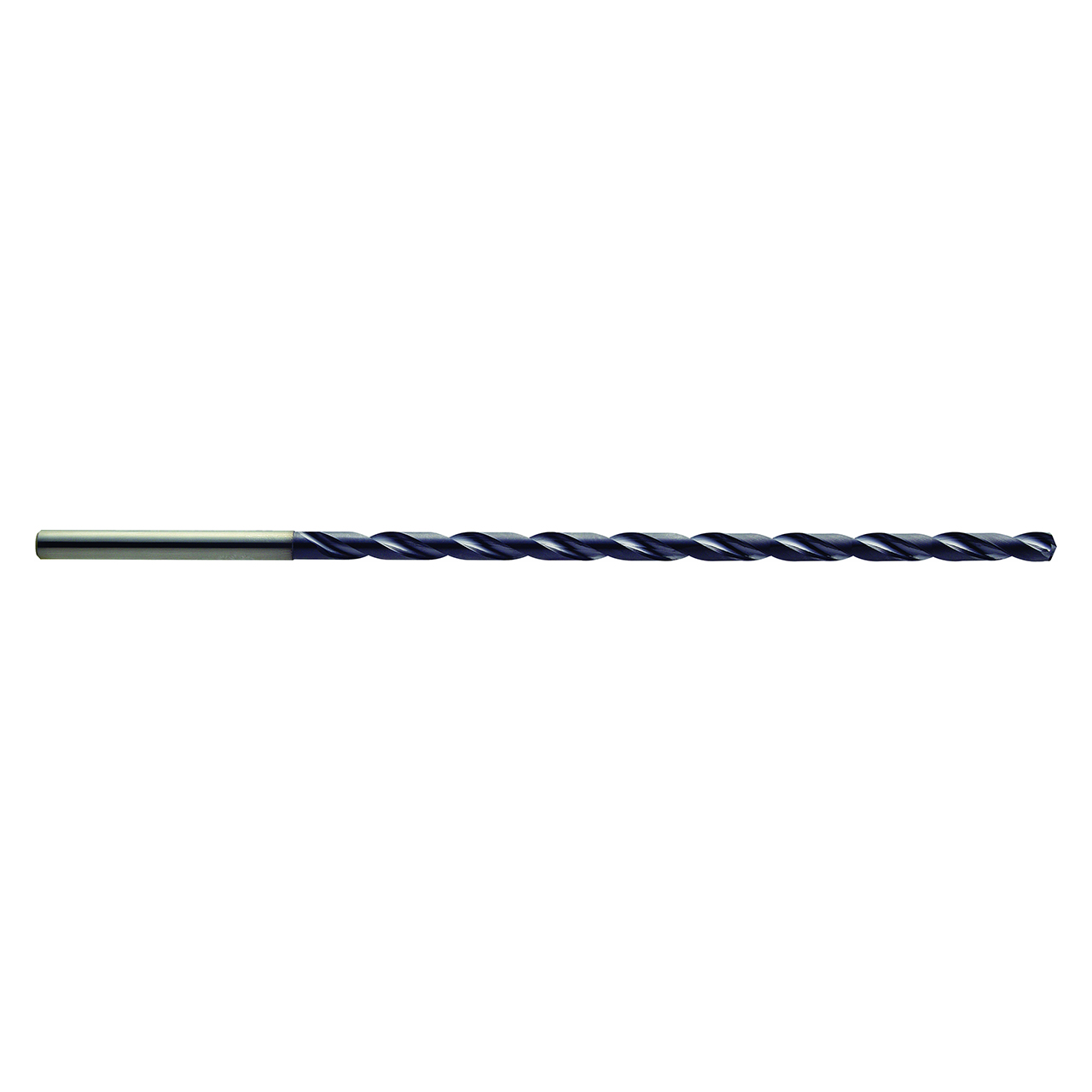

| Manufacturer Part Number | DHM15100 |
| Diameter (Decimal Inch) | 0.3937" |
| Diameter (Inch) | 37/94" |
| Diameter (mm) | 10.00mm |
| Shank Diameter (Decimal Inch) | 0.3937" |
| Shank Diameter (Inch) | 37/94" |
| Shank Diameter (mm) | 10.00mm |
| Flute Length (Decimal Inch) | 7.1654" |
| Flute Length (Inch) | 7-1/6" |
| Flute Length (mm) | 182.00mm |
| Overall Length (Decimal Inch) | 8.8976" |
| Overall Length (Inch) | 8-79/88" |
| Overall Length (mm) | 226.00mm |
| Point Length (Decimal Inch) | 0.0716" |
| Point Length (mm) | 1.82mm |
| Number of Flutes | 2 |
| Series | DHM15 |
| Point Angle (Degree) | 140 Degree |
| Helix Angle (Degree) | 30 Degree |
| Length/Diameter | 15xD |
| Shank Tolerance | h6 |
| Hole Tolerance | h7 |
| Coating | TiAlN |
| Material | Carbide |
| Coolant Pressure | 45 Bar |
| Coolant Through | Yes |
| Application | P |
| Cutting Direction | Right |
| Product Type | MQL Dream Drill |
