Product Specifications
| Manufacturer Part Number | DL517013 |
| Diameter (Inch) | 13/64" |
| Diameter (Decimal Inch) | 0.2031" |
| Diameter (mm) | 5.16mm |
| Shank Diameter (Inch) | 13/64" |
| Shank Diameter (Decimal Inch) | 0.2031" |
| Shank Diameter (mm) | 5.16mm |
| Flute Length (Inch) | 3-5/8" |
| Flute Length (Decimal Inch) | 3.6300" |
| Flute Length (mm) | 92.08mm |
| Overall Length (Inch) | 6" |
| Overall Length (Decimal Inch) | 6.0000" |
| Overall Length (mm) | 152.40mm |
| Point Length (Decimal Inch) | 0.0474" |
| Point Length (mm) | 1.20mm |
| Number of Flute | 2 |
| Point Angle (Degree) | 130 Degree |
| Helix Angle (Degree) | 38 Degree |
| Cutting Direction | Right Hand |
| Material | HSS-E |
| Coating | Bright |

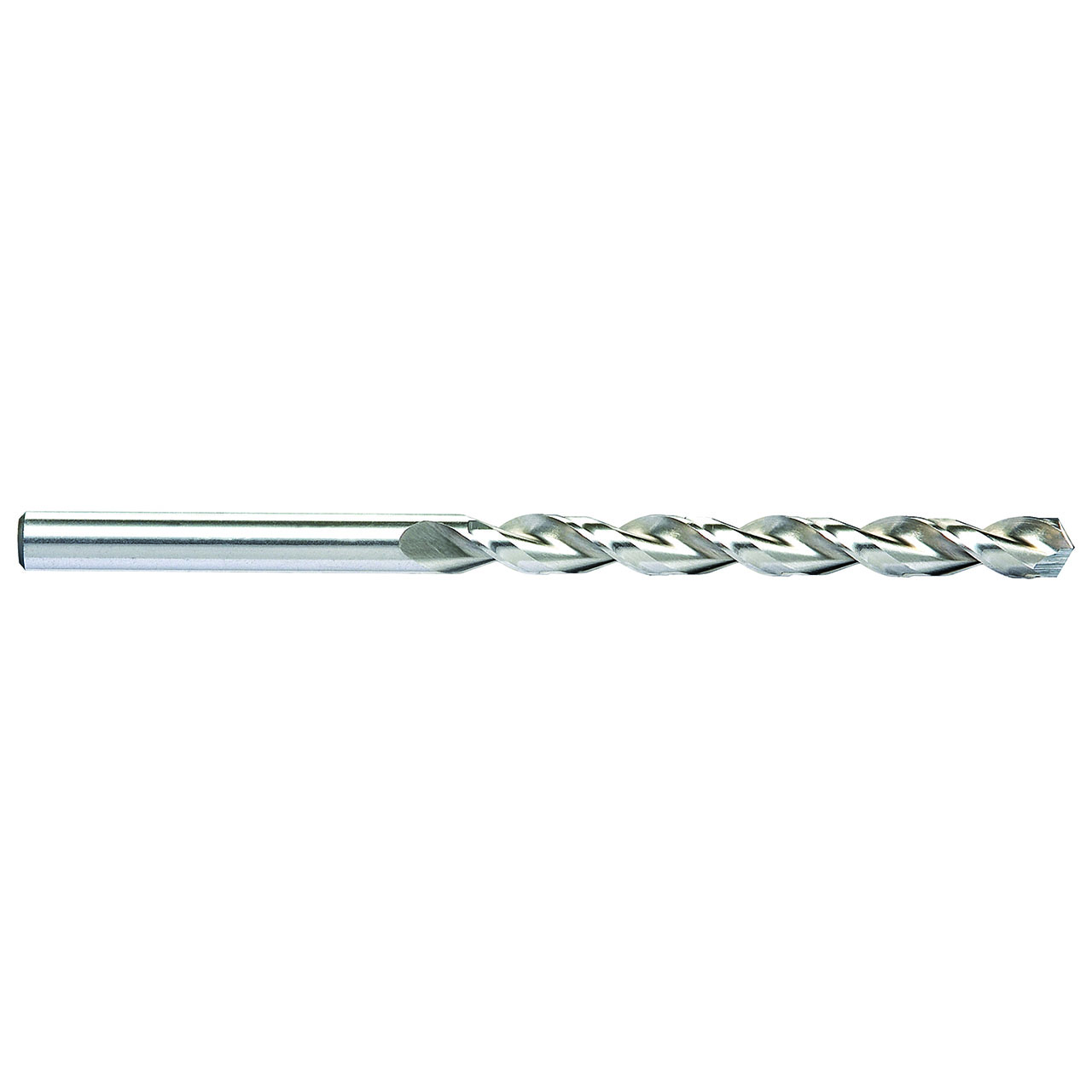

| Product Type | Taper Length Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Flute Length (Inch):
3-5/8"
Flute Length (Decimal Inch):
3.6300"
Flute Length (mm):
92.08mm
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6.0000"
Overall Length (mm):
152.40mm
Material:
HSS-E
Finish/Coating:
Bright
