| Manufacturer Part Number | DL517025 |
| Diameter (Inch) | 25/64" |
| Diameter (Decimal Inch) | 0.3906" |
| Diameter (mm) | 9.92mm |
| Shank Diameter (Inch) | 25/64" |
| Shank Diameter (Decimal Inch) | 0.3906" |
| Shank Diameter (mm) | 9.92mm |
| Flute Length (Inch) | 4-3/8" |
| Flute Length (Decimal Inch) | 4.3800" |
| Flute Length (mm) | 111.13mm |
| Overall Length (Inch) | 7" |
| Overall Length (Decimal Inch) | 7.0000" |
| Overall Length (mm) | 177.80mm |
| Point Length (Decimal Inch) | 0.0911" |
| Point Length (mm) | 2.31mm |
| Number of Flute | 2 |
| Point Angle (Degree) | 130 Degree |
| Helix Angle (Degree) | 38 Degree |
| Cutting Direction | Right Hand |
| Material | HSS-E |
| Coating | Bright |

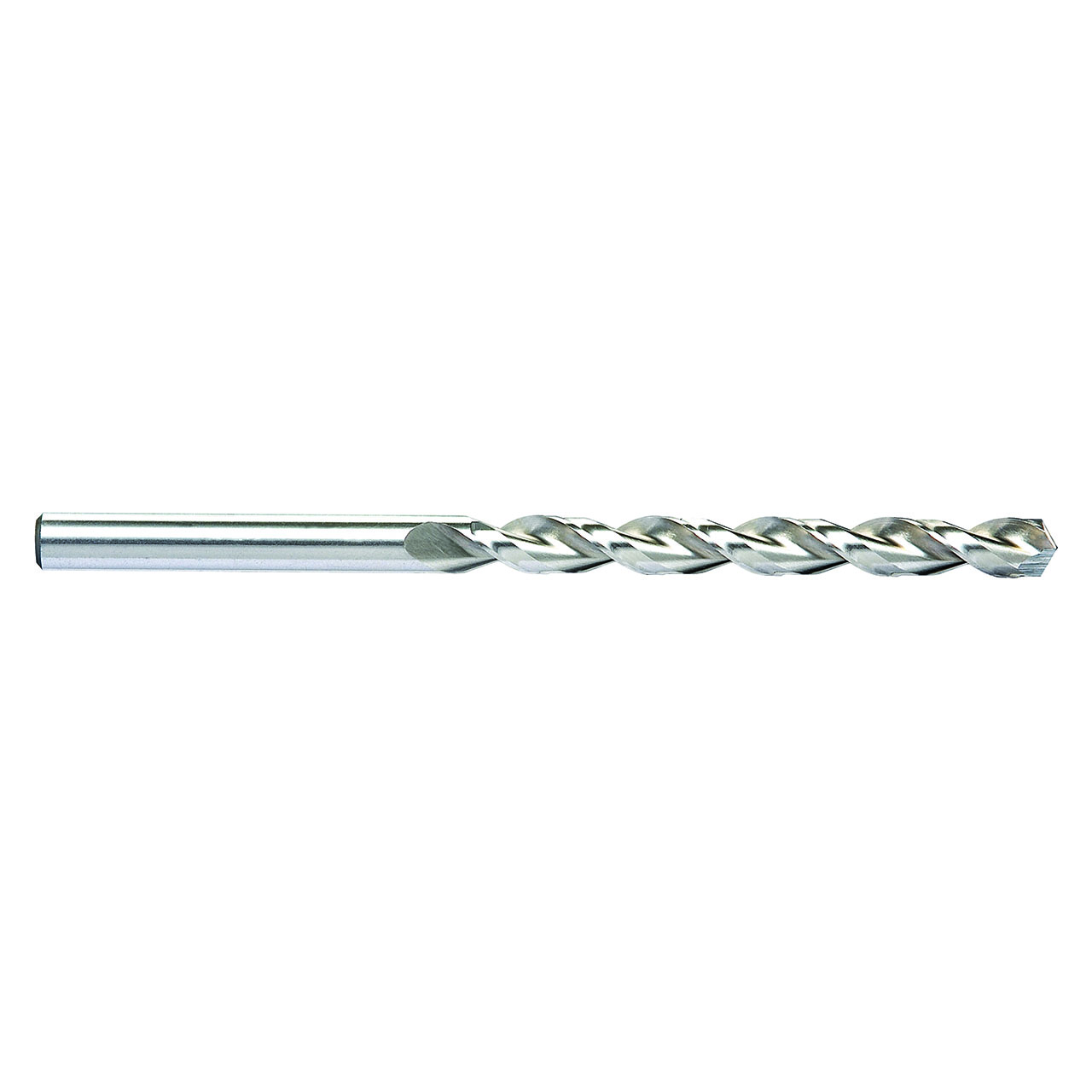

| Product Type | Taper Length Drill Bit |
