Product Specifications
| Manufacturer Part Number | DL517016 |
| Diameter (Inch) | 1/4" |
| Diameter (Decimal Inch) | 0.2500" |
| Diameter (mm) | 6.35mm |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (mm) | 6.35mm |
| Flute Length (Inch) | 3-3/4" |
| Flute Length (Decimal Inch) | 3.7500" |
| Flute Length (mm) | 95.25mm |
| Overall Length (Inch) | 6-1/8" |
| Overall Length (Decimal Inch) | 6.1250" |
| Overall Length (mm) | 155.58mm |
| Point Length (Decimal Inch) | 0.0583" |
| Point Length (mm) | 1.48mm |
| Number of Flute | 2 |
| Point Angle (Degree) | 130 Degree |
| Helix Angle (Degree) | 38 Degree |
| Cutting Direction | Right Hand |
| Material | HSS-E |
| Coating | Bright |

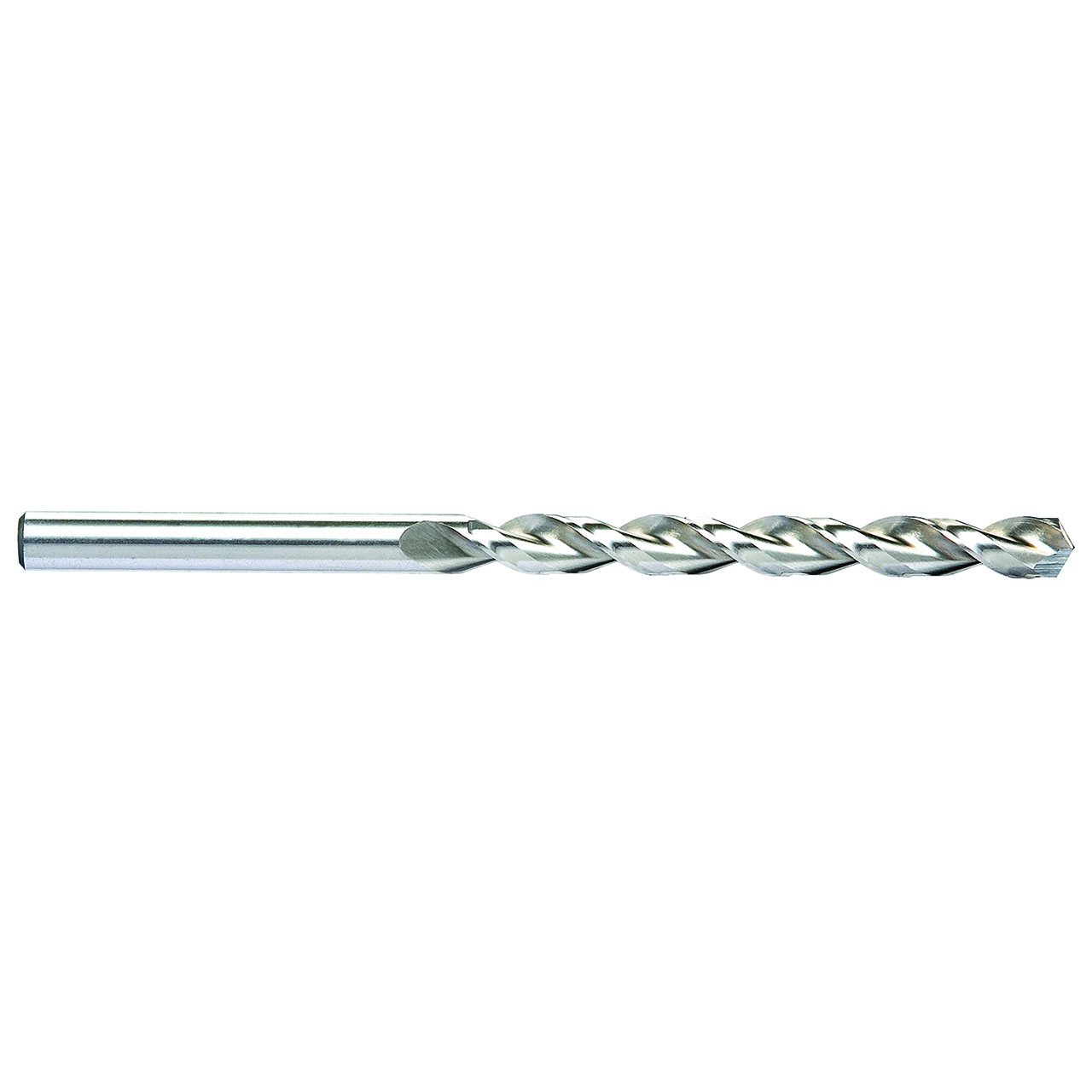

| Product Type | Taper Length Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Flute Length (Inch):
3-3/4"
Flute Length (Decimal Inch):
3.7500"
Flute Length (mm):
95.25mm
Overall Length (Inch):
6-1/8"
Overall Length (Decimal Inch):
6.1250"
Overall Length (mm):
155.58mm
Material:
HSS-E
Finish/Coating:
Bright
