| Manufacturer Part Number | DL517022 |
| Diameter (Inch) | 11/32" |
| Diameter (Decimal Inch) | 0.3438" |
| Diameter (mm) | 8.73mm |
| Shank Diameter (Inch) | 11/32" |
| Shank Diameter (Decimal Inch) | 0.3438" |
| Shank Diameter (mm) | 8.73mm |
| Flute Length (Inch) | 4-1/8" |
| Flute Length (Decimal Inch) | 4.1300" |
| Flute Length (mm) | 104.78mm |
| Overall Length (Inch) | 6-3/4" |
| Overall Length (Decimal Inch) | 6.7500" |
| Overall Length (mm) | 171.45mm |
| Point Length (Decimal Inch) | 0.0801" |
| Point Length (mm) | 2.04mm |
| Number of Flute | 2 |
| Point Angle (Degree) | 130 Degree |
| Helix Angle (Degree) | 38 Degree |
| Cutting Direction | Right Hand |
| Material | HSS-E |
| Coating | Bright |

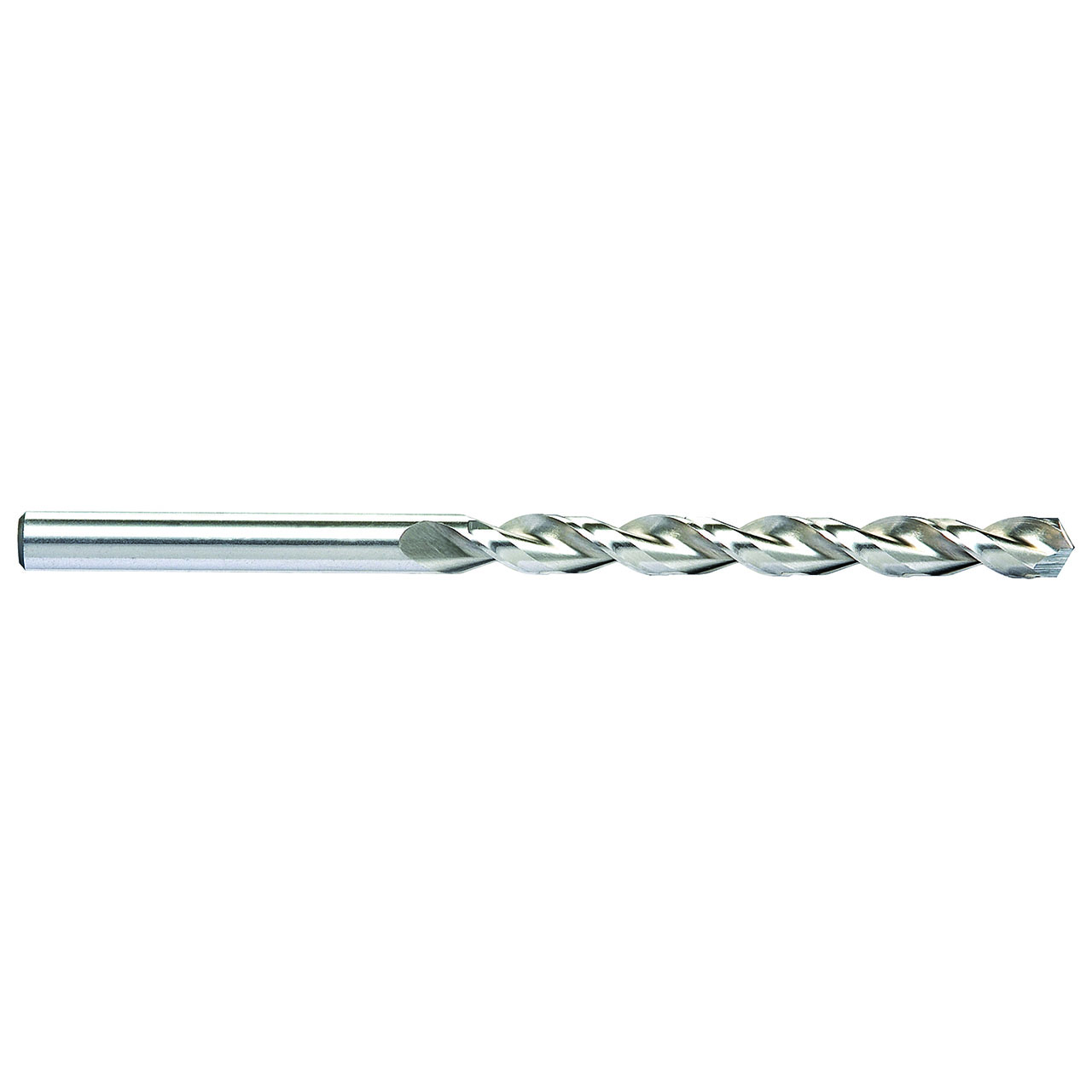

| Product Type | Taper Length Drill Bit |
