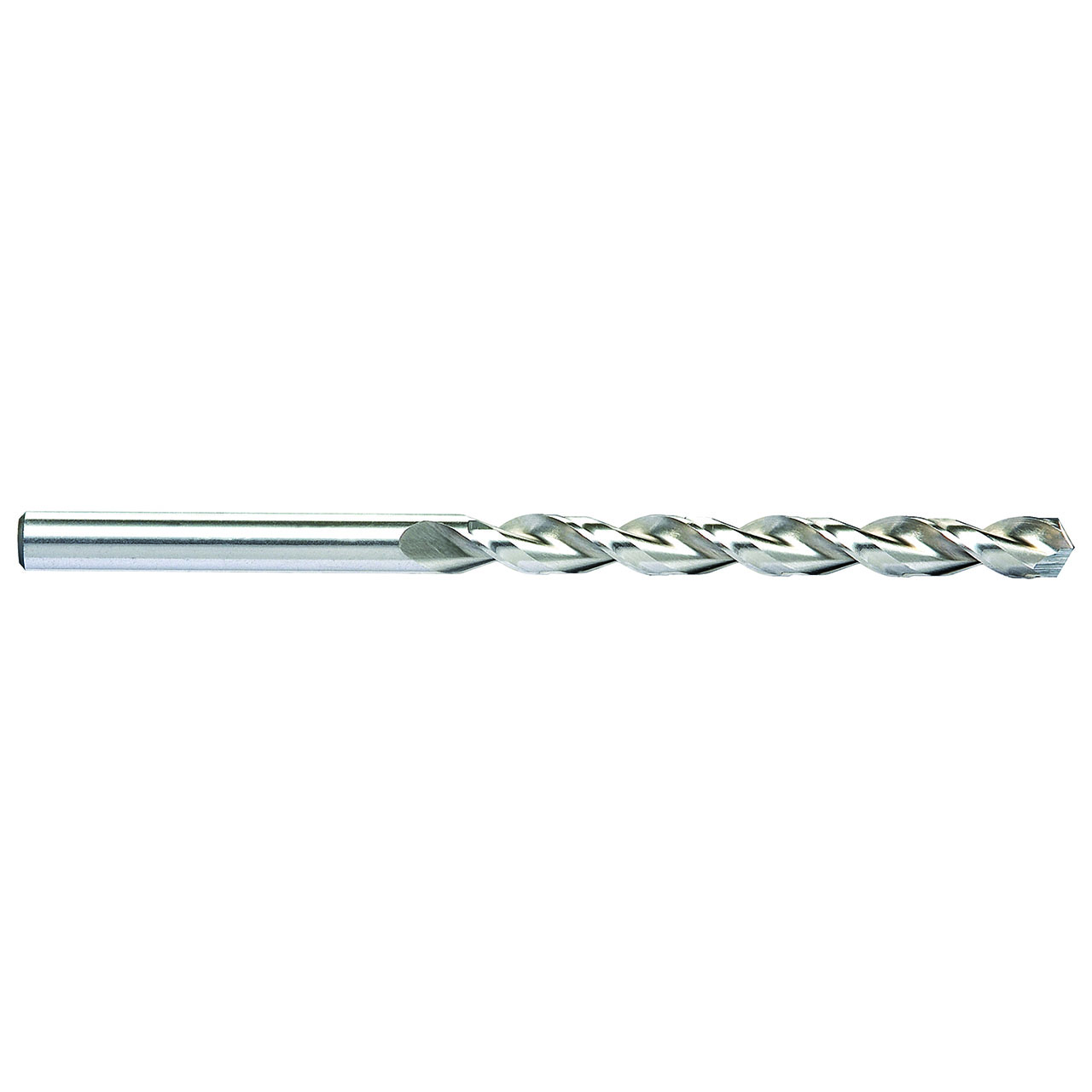

| Manufacturer Part Number | DL517020 |
| Diameter (Inch) | 5/16" |
| Diameter (Decimal Inch) | 0.3125" |
| Diameter (mm) | 7.94mm |
| Shank Diameter (Inch) | 5/16" |
| Shank Diameter (Decimal Inch) | 0.3125" |
| Shank Diameter (mm) | 7.94mm |
| Flute Length (Inch) | 4" |
| Flute Length (Decimal Inch) | 4.0000" |
| Flute Length (mm) | 101.60mm |
| Overall Length (Inch) | 6-3/8" |
| Overall Length (Decimal Inch) | 6.3750" |
| Overall Length (mm) | 161.93mm |
| Point Length (Decimal Inch) | 0.0729" |
| Point Length (mm) | 1.85mm |
| Number of Flute | 2 |
| Point Angle (Degree) | 130 Degree |
| Helix Angle (Degree) | 38 Degree |
| Cutting Direction | Right Hand |
| Material | HSS-E |
| Coating | Bright |
| Product Type | Taper Length Drill Bit |
