Product Specifications
| # Manufacturer Number | DL601021 |
| Diameter (Decimal Inch) | 0.3281" |
| Diameter (Inch) | 21/64" |
| Diameter (mm) | 8.33mm |
| Shank Diameter (Decimal Inch) | 0.3281" |
| Shank Diameter (Inch) | 21/64" |
| Shank Diameter (mm) | 8.33mm |
| Overall Length (Decimal Inch) | 6.0000" |
| Overall Length (Inch) | 6" |
| Overall Length (mm) | 152.40mm |
| Flute Length (Decimal Inch) | 3.3125" |
| Flute Length (Inch) | 3-5/16" |
| Flute Length (mm) | 84.14mm |
| Point Length (Decimal Inch) | 0.0680" |
| Point Length (mm) | 1.73mm |
| Point Angle (Degree) | 135 Degree |
| 30 Degree | 30 Degree |
| Number of Flutes | 2 |
| Coating | Bright |
| Material | HSS Co5 |
| Application | P |
| Cutting Direction | Right |

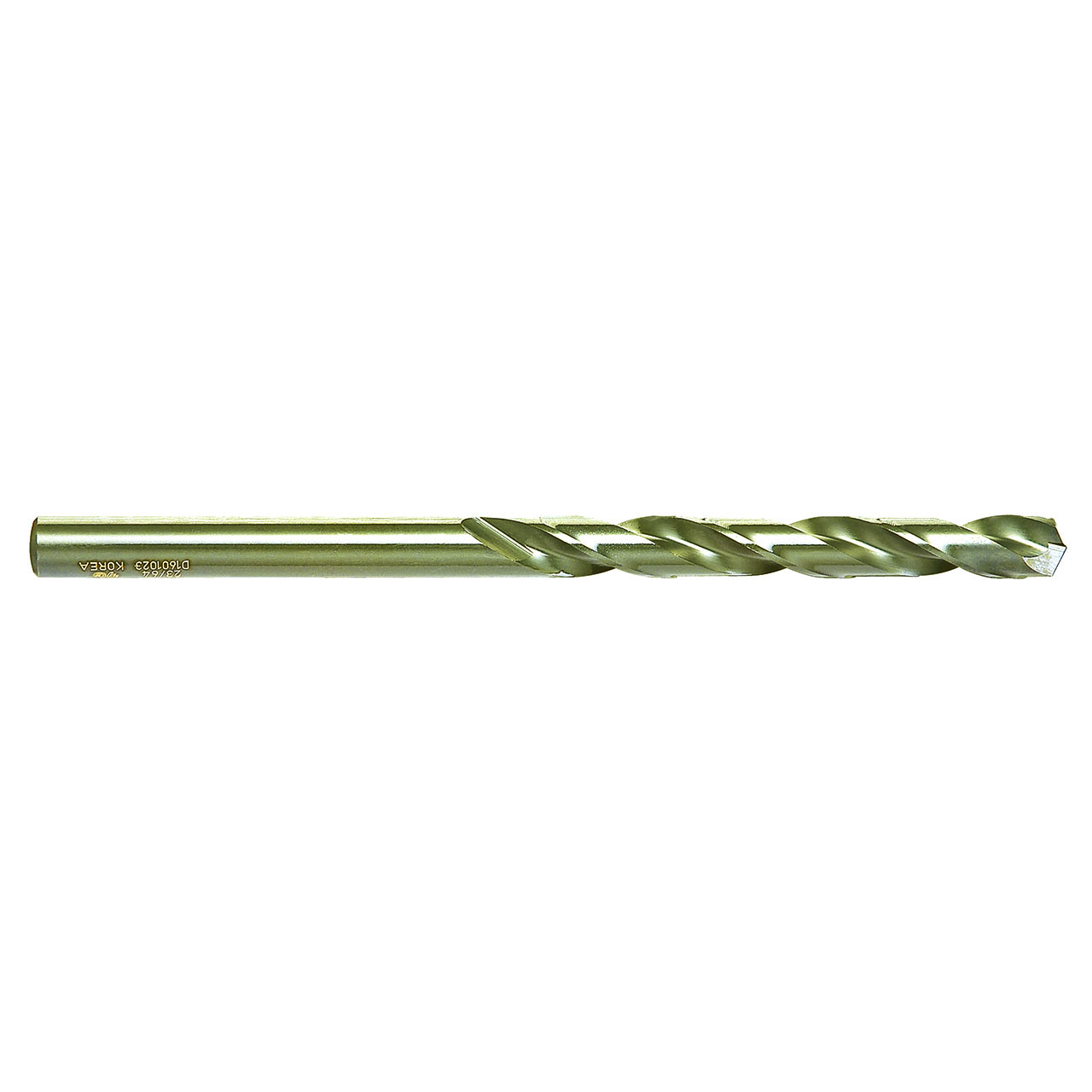

| Product Type | Aircraft Extension Drill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Drill Bit Size (Inch):
21/64"
Drill Bit Size (Decimal Inch):
0.3281"
Drill Bit Size (mm):
8.33mm
Drill Point Angle:
135 Degree
Flute Length (Inch):
3-5/16"
Flute Length (Decimal Inch):
3.3125"
Flute Length (mm):
84.14mm
Material:
HSS Co5
Finish/Coating:
Bright
interval quantity:
1
