Product Specifications
| # Manufacturer Number | DL603241 |
| Diameter (Decimal Inch) | 0.1770" |
| Diameter (Inch) | 17/96" |
| Diameter (mm) | 4.50mm |
| Shank Diameter (Decimal Inch) | 0.1770" |
| Shank Diameter (Inch) | 17/96" |
| Shank Diameter (mm) | 4.50mm |
| Overall Length (Decimal Inch) | 6.0000" |
| Overall Length (Inch) | 6" |
| Overall Length (mm) | 152.40mm |
| Flute Length (Decimal Inch) | 2.1875" |
| Flute Length (Inch) | 2-3/16" |
| Flute Length (mm) | 55.56mm |
| Point Length (Decimal Inch) | 0.0367" |
| Point Length (mm) | 0.93mm |
| Point Angle (Degree) | 135 Degree |
| 30 Degree | 30 Degree |
| Number of Flutes | 2 |
| Coating | Bright |
| Material | HSS Co5 |
| Application | P |
| Cutting Direction | Right |

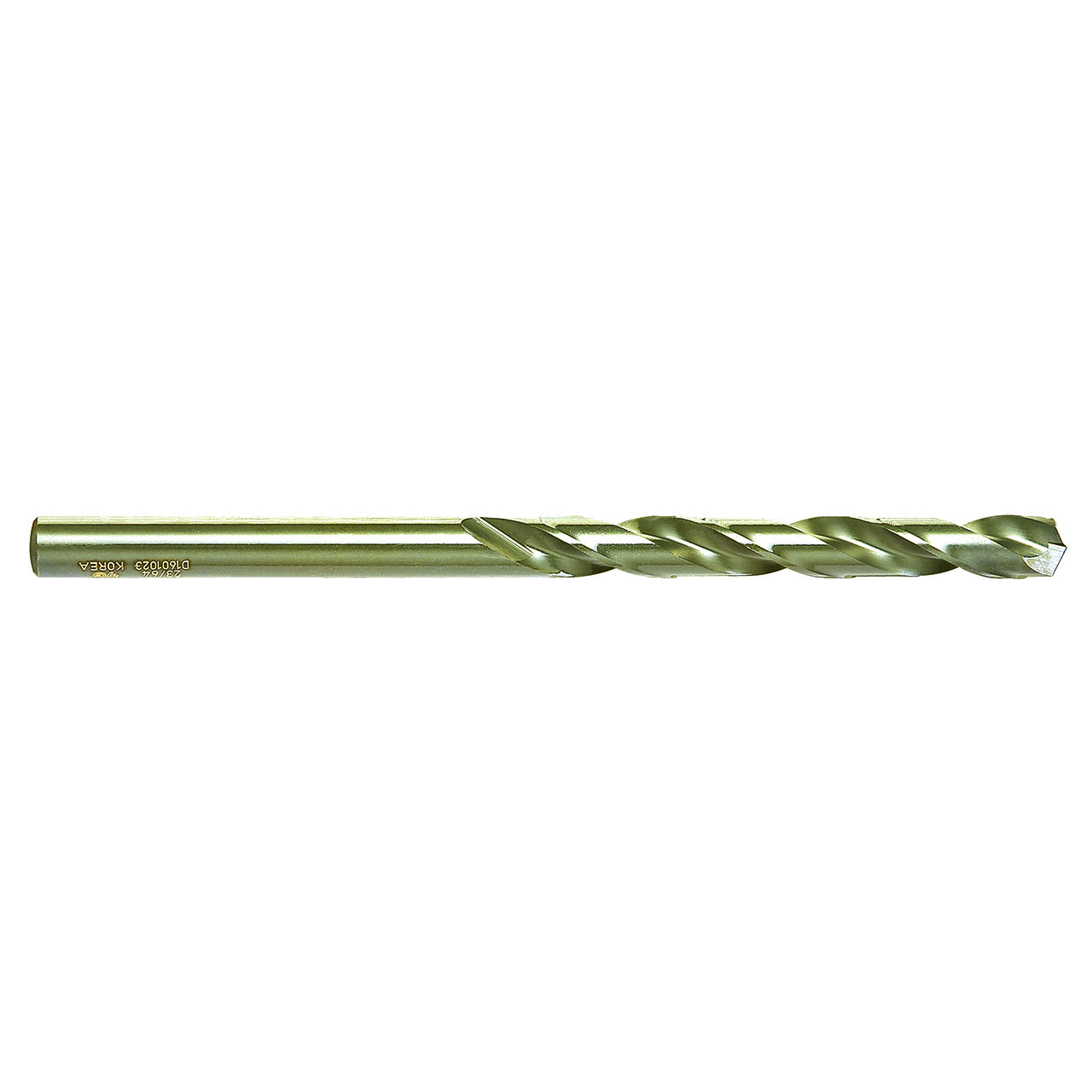

| Product Type | Aircraft Extension Drill |
| Drill Bit Size (Wire) | #16 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Drill Bit Size (Inch):
17/96"
Drill Bit Size (Decimal Inch):
0.1770"
Drill Bit Size (mm):
4.50mm
Drill Bit Size (Wire):
#16
Drill Point Angle:
135 Degree
Flute Length (Inch):
2-3/16"
Flute Length (Decimal Inch):
2.1875"
Flute Length (mm):
55.56mm
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6.0000"
Overall Length (mm):
152.40mm
Material:
HSS Co5
Finish/Coating:
Bright
