Product Specifications
| # Manufacturer Number | DL604032 |
| Diameter (Decimal Inch) | 0.5000" |
| Diameter (Inch) | 1/2" |
| Diameter (mm) | 12.70mm |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (mm) | 12.70mm |
| Overall Length (Decimal Inch) | 12.0000" |
| Overall Length (Inch) | 12" |
| Overall Length (mm) | 304.80mm |
| Flute Length (Decimal Inch) | 4.5000" |
| Flute Length (Inch) | 4-1/2" |
| Flute Length (mm) | 114.30mm |
| Point Length (Decimal Inch) | 0.1036" |
| Point Length (mm) | 2.63mm |
| Point Angle (Degree) | 135 Degree |
| 30 Degree | 30 Degree |
| Number of Flutes | 2 |
| Coating | Bright |
| Material | HSS Co5 |
| Application | P |
| Cutting Direction | Right |

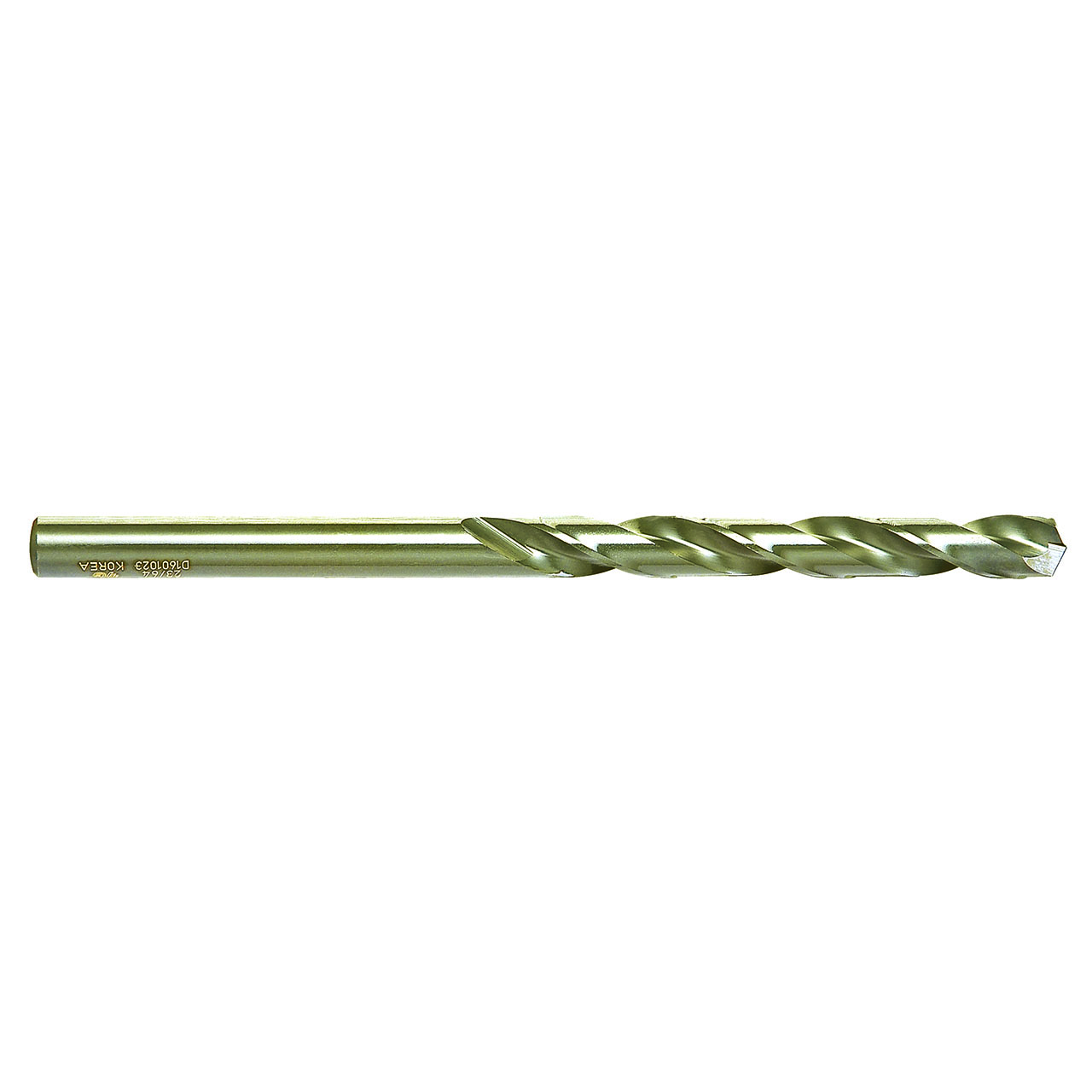

| Product Type | Aircraft Extension Drill |
