Product Specifications

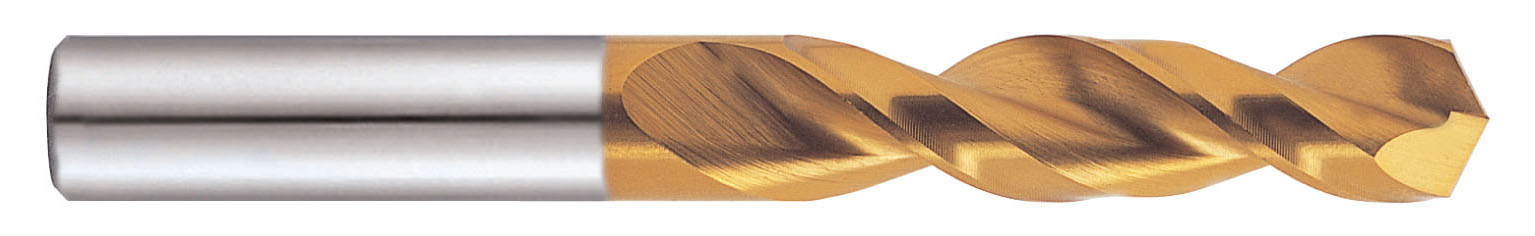

| Manufacturer Part Number | DN516108 |
| Diameter (Inch) | 25/94" |
| Diameter (Decimal Inch) | 0.2660" |
| Diameter (mm) | 6.76mm |
| Shank Diameter (Inch) | 25/94" |
| Shank Diameter (Decimal Inch) | 0.2660" |
| Shank Diameter (mm) | 6.76mm |
| Flute Length (Inch) | 1-1/2" |
| Flute Length (Decimal Inch) | 1.5000" |
| Flute Length (mm) | 38.10mm |
| Overall Length (Inch) | 2-11/16" |
| Overall Length (Decimal Inch) | 2.6875" |
| Overall Length (mm) | 68.26mm |
| Point Length (Decimal Inch) | 0.0620" |
| Point Length (mm) | 1.58mm |
| Number of Flute | 2 |
| Point Angle (Degree) | 130 Degree |
| Helix Angle (Degree) | 38 Degree |
| Cutting Direction | Right Hand |
| Material | HSS-E |
| Coating | TiN |
| Product Type | Screw Machine Length Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Flute Length (Inch):
1-1/2"
Flute Length (Decimal Inch):
1.5000"
Flute Length (mm):
38.10mm
Overall Length (Inch):
2-11/16"
Overall Length (Decimal Inch):
2.6875"
Overall Length (mm):
68.26mm
Material:
HSS-E
Finish/Coating:
TiN
