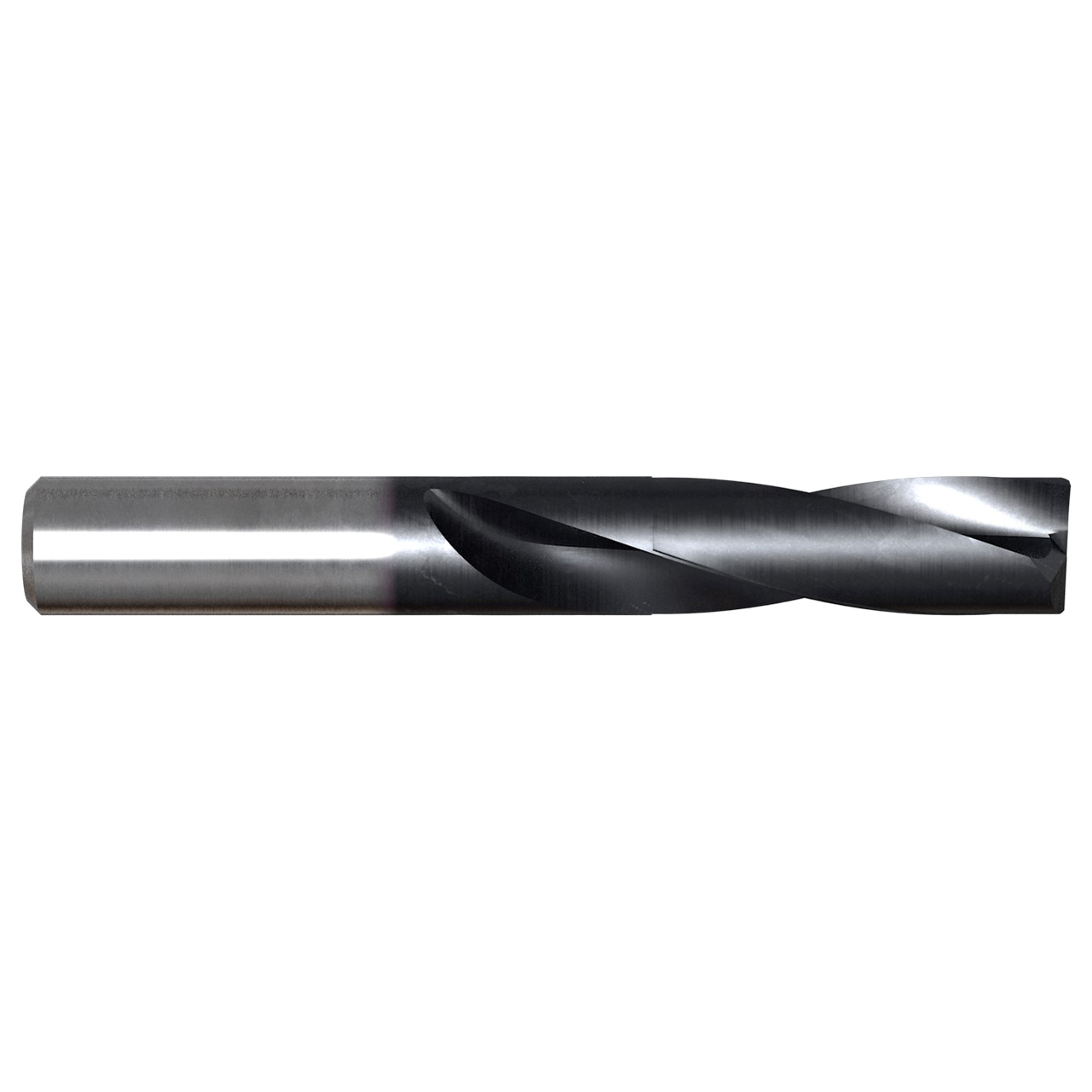

| Manufacturer Part Number | DPP447111 |
| Diameter (Inch) | 7/16" |
| Diameter (Decimal Inch) | 0.4370" |
| Diameter (mm) | 11.10mm |
| Shank Diameter (Inch) | 43/91" |
| Shank Diameter (Decimal Inch) | 0.4724" |
| Shank Diameter (mm) | 12.00mm |
| Flute Length (Inch) | 1-31/32" |
| Flute Length (Decimal Inch) | 1.9685" |
| Flute Length (mm) | 50.00mm |
| Overall Length (Inch) | 3-25/46" |
| Overall Length (Decimal Inch) | 3.5433" |
| Overall Length (mm) | 90.00mm |
| Number of Flutes | 2 |
| Point Angle | 180 Degree |
| Helix Angle | 20 Degree |
| Length/Diameter | 2 |
| Series | DPP447 |
| Shank Tolerance | h6 |
| Coolant Through | No |
| Coating | X-Coated |
| Material | Carbide |
| Hole Tolerance | h7 |
| Application | P,K |
| Cutting Direction | Right |
